Input And Output Diagram

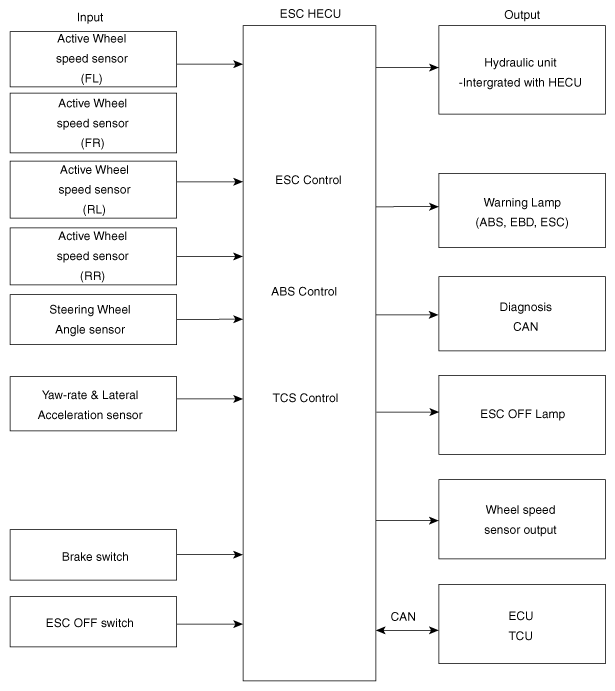

Fig 1: Electronic Stability Program Input And Output Diagram

G12329908

Courtesy of KIA MOTORS AMERICA, INC.
