Circuit Diagram

Fig 1: Cruise Control Switch System Circuit
G12332066Courtesy of KIA MOTORS AMERICA, INC.

[Trip + Cruise]

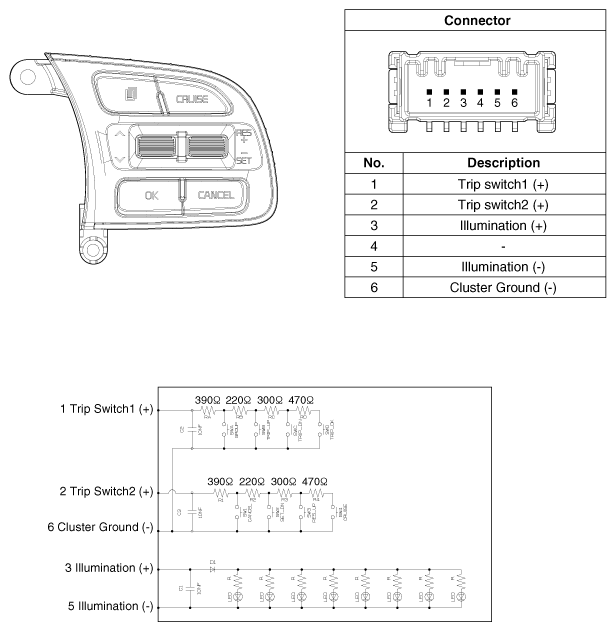

Fig 2: Cruise Control Switch System Circuit (Trip + Cruise)
G12332067Courtesy of KIA MOTORS AMERICA, INC.

[Trip + Cruise + SCC]

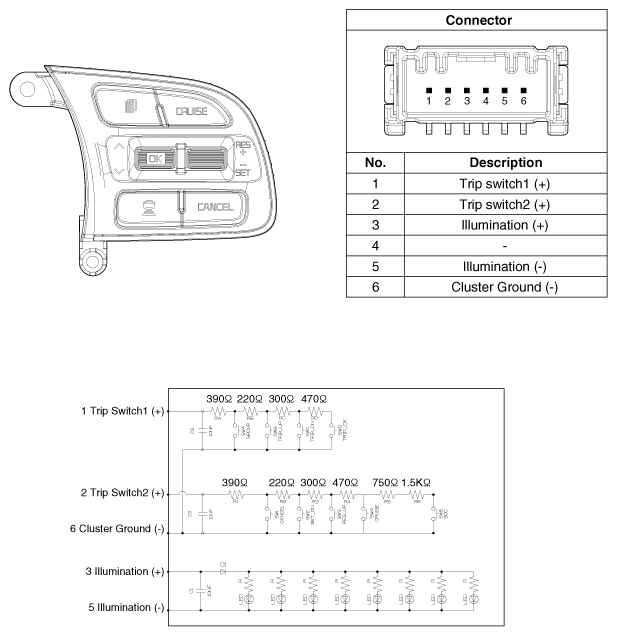

Fig 3: Cruise Control Switch System Circuit (Trip + Cruise + SCC)
G12332068Courtesy of KIA MOTORS AMERICA, INC.
