Roll Rod Bracket

Remove the engine room under cover.
(Refer to Engine and Transaxle Assembly - "ENGINE ROOM UNDER COVER ")
Remove the roll rod bracket (A).
Tightening Torque :

Bolt (B):

107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb.ft)

Bolts (C):

49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb.ft)

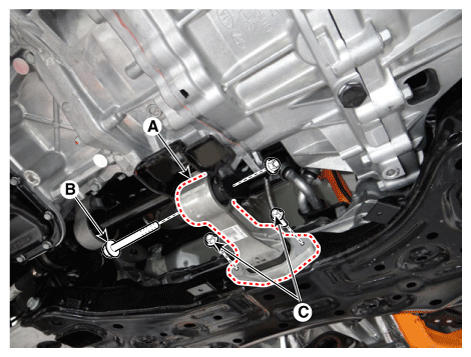

Fig 1: Removing Roll Rod Bracket
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
