Engine Mounting Bracket

Remove the engine room under cover.
(Refer to Engine and Transaxle Assembly - "ENGINE ROOM UNDER COVER ")
Install the jack to the edge of upper oil pan to support the engine.

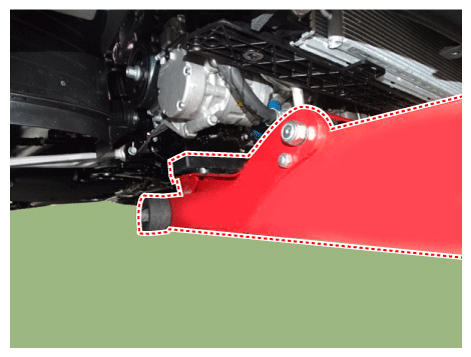

Fig 1: Installing Jack To Edge Of Upper Oil Pan To Support Engine
Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Put a rubber block between the jack and oil pan to avoid damaging the oil pan.
Remove the engine mounting support bracket (A).
Tightening Torque

Nut (B):

88.3 - 107.9 N.m (9.0 - 11.0 kgf.m, 65.1 - 79.6 lb.ft)

Bolt (C) and nuts (D):

58.8 - 73.5 N.m (6.0 - 7.5 kgf.m, 43.3 - 54.2 lb.ft)

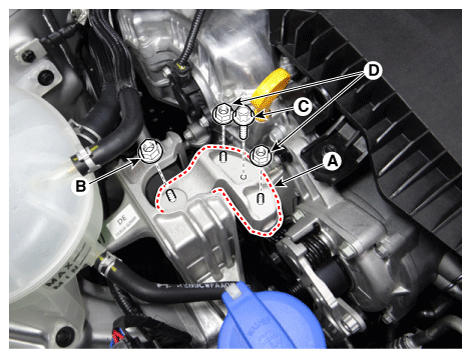

Fig 2: Removing Engine Mounting Support Bracket
Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Do not reuse the bolt C, which is special bolt coated with bond.
Remove the reservoir tank.
(Refer to Cooling System - "RESERVOIR TANK ")
Remove the engine mounting bracket (A).
Tightening Torque :

49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb.ft)

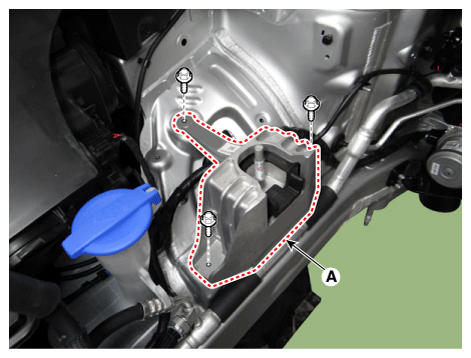

Fig 3: Removing Engine Mounting Bracket
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
