Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. EPS Type Recognition.
  2. Ignition "ON".
  1. Connect KDS/GDS to Data Link Connector (DLC).
  2. Perform "EPS Type Recognition" in "Vehicle S/W management" with KDS/GDS.
 Fig 1 to Fig 4

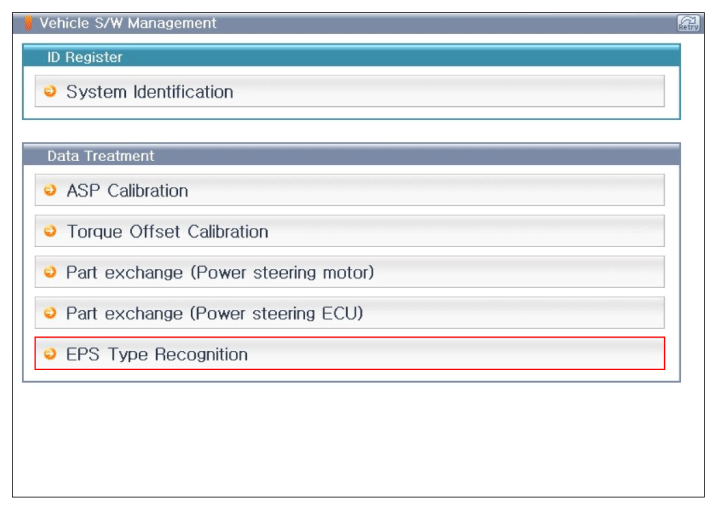

Fig 1: Screen Display - First Screen Of Vehicle S/W Management
G12335635Courtesy of KIA MOTORS AMERICA, INC.

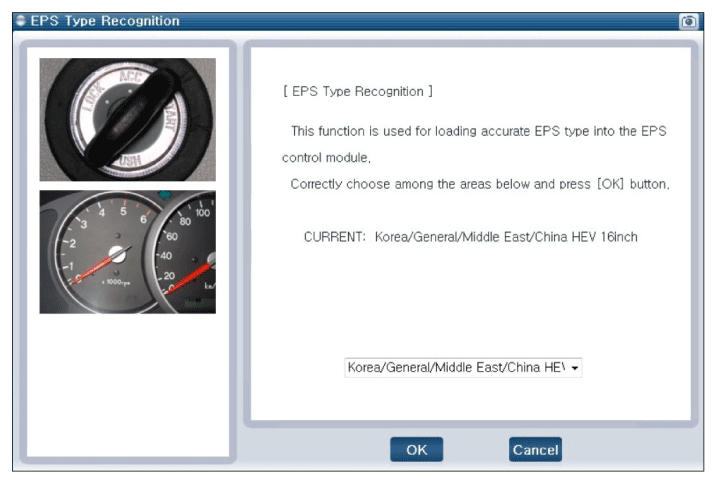

Fig 2: Screen Display - EPS Type Recognition
G12335636Courtesy of KIA MOTORS AMERICA, INC.

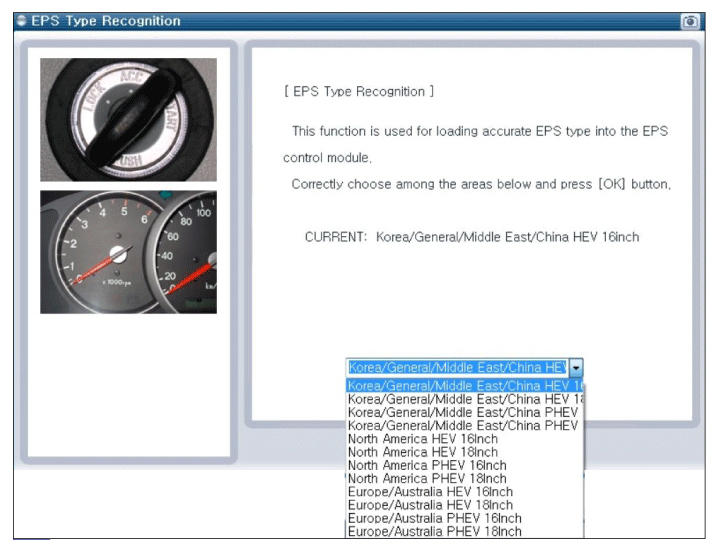

Fig 3: Screen Display - EPS Type Select
G12335637Courtesy of KIA MOTORS AMERICA, INC.

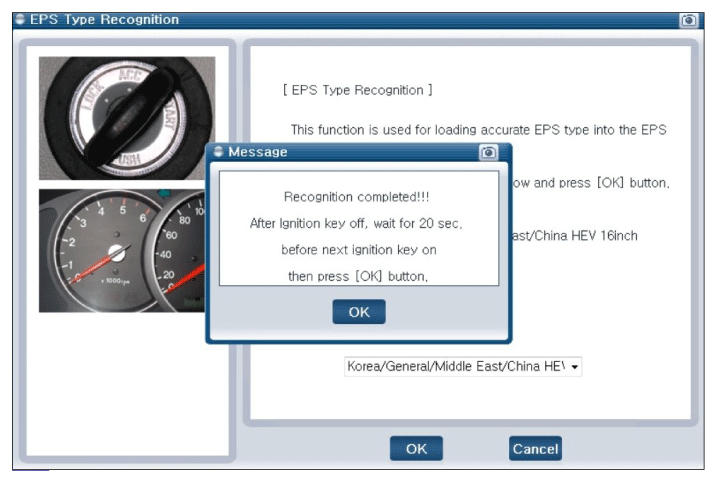

Fig 4: Screen Display - Recognition Complete
G12335638Courtesy of KIA MOTORS AMERICA, INC.
