Monitor KDS/GDS Data

Inspection Condition Inspection Procedure Reference
  1. Shift lever position "P" & Ignition "ON"/"READY". ("READY" lamp ON in Instrument cluster)
  1. Connect KDS/GDS to Data Link Connector (DLC).
  2. Monitor parameter in "Current Data" with KDS/GDS.
 Fig 1 to Fig 2

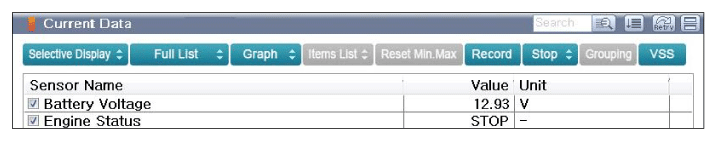

Fig 1: Screen Display - Ignition ON & Engine OFF
G12335539Courtesy of KIA MOTORS AMERICA, INC.

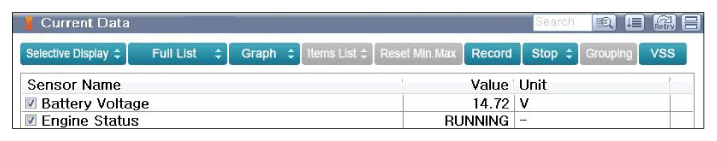

Fig 2: Screen Display - Ignition ON & Engine ON
G12335540Courtesy of KIA MOTORS AMERICA, INC.
Good
  • Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
  • Repair or replace as necessary and then go to "VERIFICATION OF REPAIR " procedure.
