Circuit Diagram

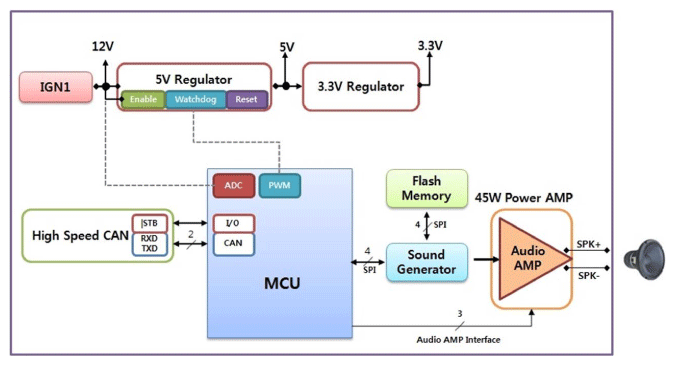

Fig 1: Virtual Engine Sound System Unit System Circuit

G12335184

Courtesy of KIA MOTORS AMERICA, INC.
