Repair Procedures: Removal

Remove the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")
Remove the battery and battery tray.
(Refer to Engine Electrical System - "BATTERY ")

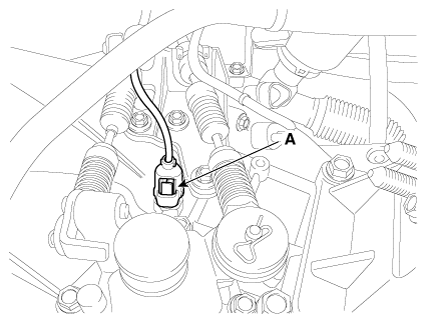

Disconnect the back up lamp switch (A).

Fig 1: Locating Back Up Lamp Switch
Courtesy of KIA MOTORS AMERICA, INC.

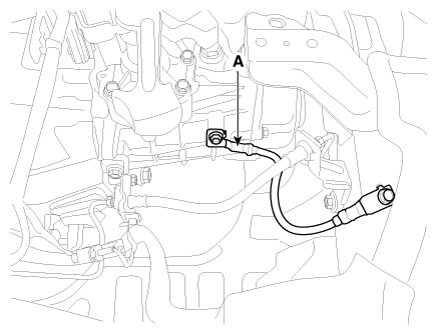

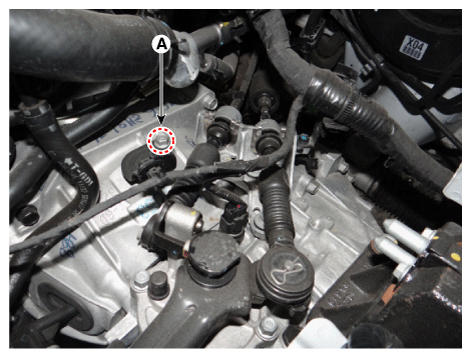

Remove the ground (A).

Fig 2: Locating Ground
Courtesy of KIA MOTORS AMERICA, INC.

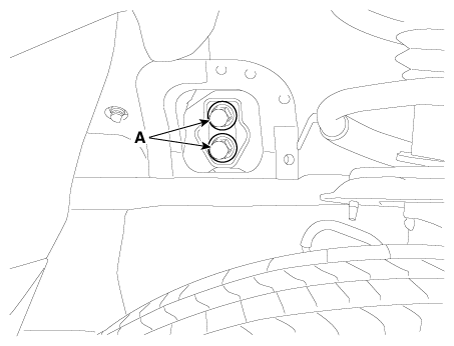

Remove the wiring bracket bolts (A).

Fig 3: Locating Wiring Bracket Bolts
Courtesy of KIA MOTORS AMERICA, INC.

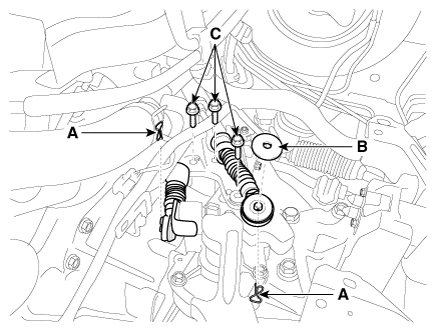

Remove the control cable.
1. Remove the pin (A) and washer (B).
2. Remove the bracket mounting bolts (C).
  Tightening torque:

  14.7 - 21.6 N.m (1.5 - 2.2 kgf.m, 10.8 - 15.9 lb.ft)

  Fig 4: Locating Bracket Mounting Bolts, Pin And Washer
  Courtesy of KIA MOTORS AMERICA, INC.

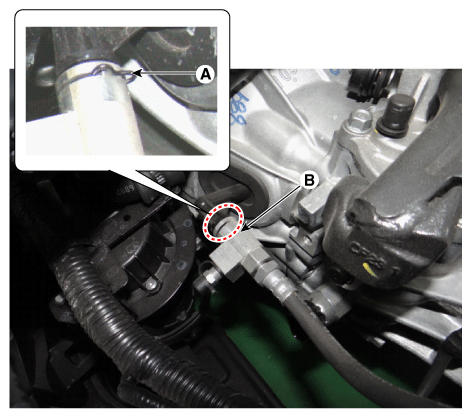

Remove the concentric slave cylinder tube (A) after removing the pin (B).

Fig 5: Locating Concentric Slave Cylinder Tube And Pin
Courtesy of KIA MOTORS AMERICA, INC.

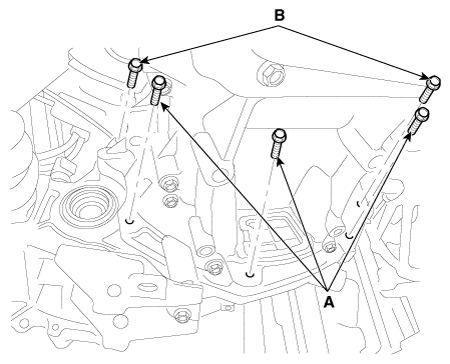

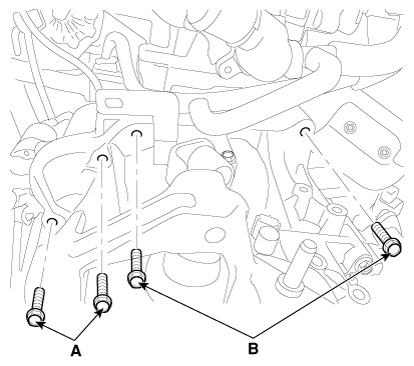

Loosen the starter mounting bolts (A) and the transaxle mounting bolts (B).
Tightening torque:
1. 49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb.ft)
2. 42.2 - 54.0 N.m (4.3 - 5.5 kgf.m, 31.1 - 39.8 lb.ft)

  Fig 6: Locating Starter Mounting Bolts And Transaxle Mounting Bolts
  Courtesy of KIA MOTORS AMERICA, INC.
Remove the cowl top cover.
(Refer to Body - "COWL TOP COVER ")

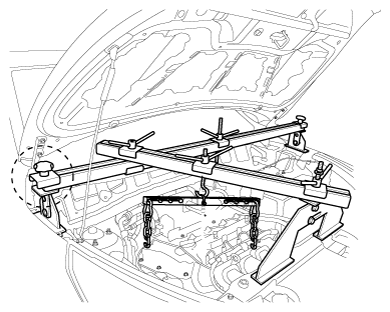

Assemble the engine support fixture on the engine room.
(Refer to Special Service Tools - "ENGINE SUPPORT FIXTURE ASSEMBLY DRAWING ")

Fig 7: Assembling Engine Support Fixture On Engine Room
Courtesy of KIA MOTORS AMERICA, INC.

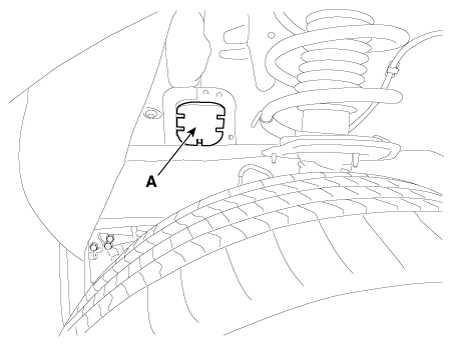

Remove the cover (A).

Fig 8: Locating Cover
Courtesy of KIA MOTORS AMERICA, INC.

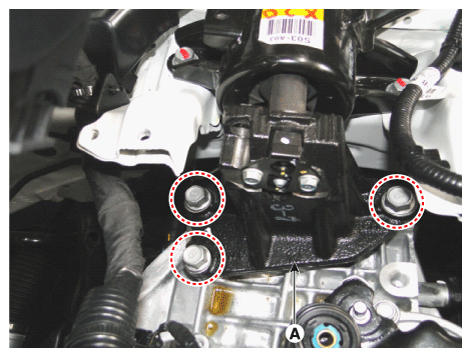

Remove the transaxle mounting bracket bolts (A).
Tightening torque:

88.3 - 107.9 N.m (9.0 - 11.0 kgf.m, 65.1 - 79.6 lb.ft)

Fig 9: Locating Transaxle Mounting Bracket Bolts
Courtesy of KIA MOTORS AMERICA, INC.

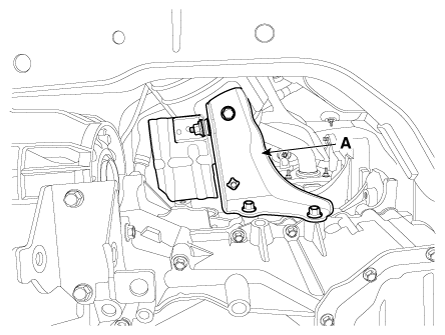

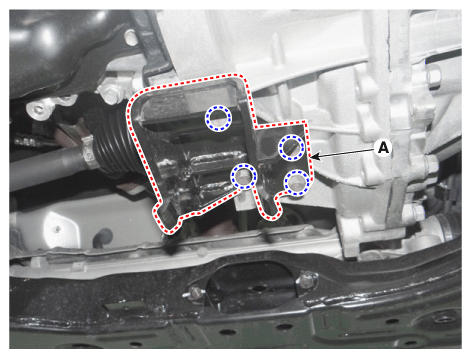

Remove the transaxle support bracket (A).
Tightening torque:

58.8 - 78.5 N.m (6.0 - 8.0 kgf.m, 43.4 - 57.9 lb.ft)

Fig 10: Transaxle Support Bracket Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Remove the under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")
Remove the vacuum pump.
(Refer to Brake System - "BRAKE BOOSTER ")
Remove the drive shaft assembly.
(Refer to Driveshaft and Axle - "FRONT DRIVESHAFT ")
Loosen the intercooler pipe mounting bolts (A).
Tightening torque:

4.9 - 6.8 N.m (0.5 - 0.7 kgf.m, 3.6 - 5.0 lb.ft)

Fig 11: Locating Intercooler Pipe Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Remove the heat protector (A).
Tightening torque:

39.2 - 49.0 N.m (4.0 - 5.0 kgf.m, 28.9 - 36.2 lb.ft)

Fig 12: Locating Heat Protector
Courtesy of KIA MOTORS AMERICA, INC.

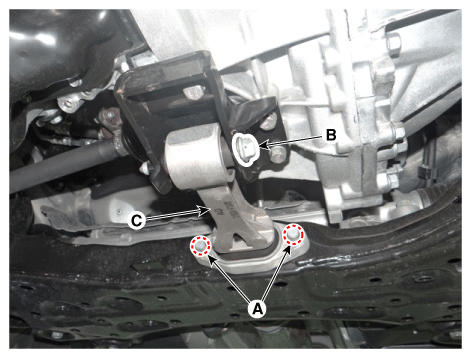

Remove the roll rod bracket (C) after removing bolt (A, B).
Tightening torque
1. 107.9 - 127.5 N.m (5.0 - 6.5 kgf.m, 79.6 - 94.0 lb.ft)
2. 49.0 - 63.7 N.m (11.0 - 13.0 kgf.m, 36.2 - 47.0 lb.ft)
Fig 13: Locating Roll Rod Bracket And Bolt
Courtesy of KIA MOTORS AMERICA, INC.
Remove the roll rod support bracket (A).
Tightening torque:

49.0 - 68.6 N.m (5.0 - 7.0 kgf.m, 36.2 - 50.6 lb.ft)

Fig 14: Locating Roll Rod Support Bracket With Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Support the transaxle safely on a jack.

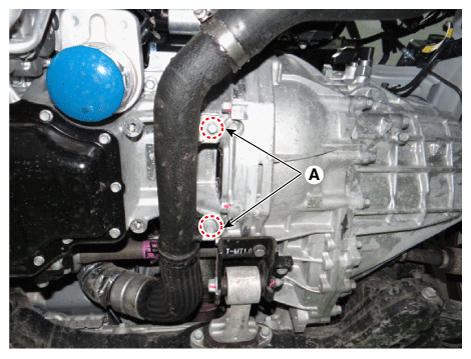

Loosen the transaxle lower mounting bolts (A, B).
Tightening torque
1. 42.2 - 48.1 N.m (4.3 - 4.9 kgf.m, 31.1 - 35.4 lb.ft)
2. 42.2 - 54.0 N.m (4.3 - 5.5 kgf.m, 31.1 - 39.8 lb.ft)
Fig 15: Locating Transaxle Lower Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.
After separating the transaxle from the engine, remove the transaxle by lowering the jack slowly.
NOTE: Be careful not to damage other nearby systems or parts when removing the transaxle assembly.
