Component Inspection

■ Check APS

1. Connect GDS to DLC (Data Link Cable).
2. Warm up the engine to normal operating temperature.
3. Check the "Current Data  " about related DTC with GDS.

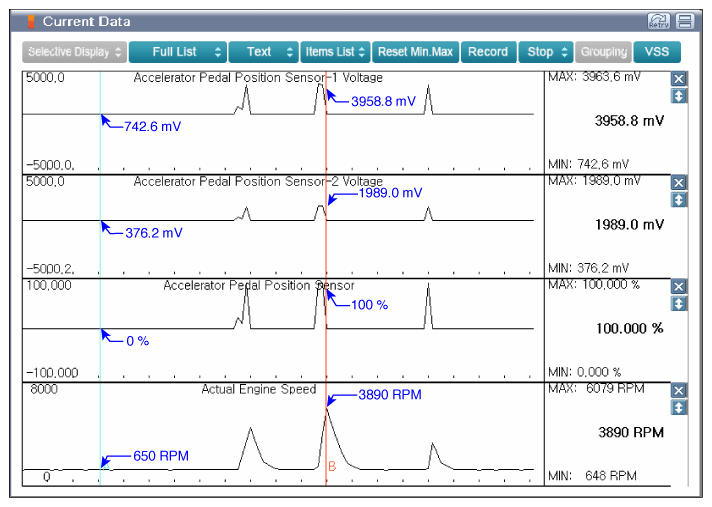

   Fig 1: Scantool Display - Engine Idle After Warm Up & At Acceleration

   Courtesy of KIA MOTORS AMERICA, INC.
   1. Engine Idle after Warm Up
   2. At Acceleration
4. Is the measured signal waveform O.K?

   YES

   • Substitute with a known - good ECM and check for proper operation. If the problem is corrected, replace ECM and go to "Verification of Vehicle Repair " procedure.

   NO

   • Substitute with a known-good APS and check for proper operation. If the problem is corrected, replace APS and then go to "Verification of Vehicle Repair " procedure.
