Monitor KDS/GDS Data

  1. Connect KDS/GDS to DLC (Data Link Cable).
  2. Monitor "Current Data" on cold temperature and normal temperature condition.
  3. Check the "Current Data  " about related DTC with KDS/GDS.

    Specification:  Refer to Fig 1, Fig 2

    Fig 1: Scantool Display - Cold Engine Condition
    G12153459Courtesy of KIA MOTORS AMERICA, INC.

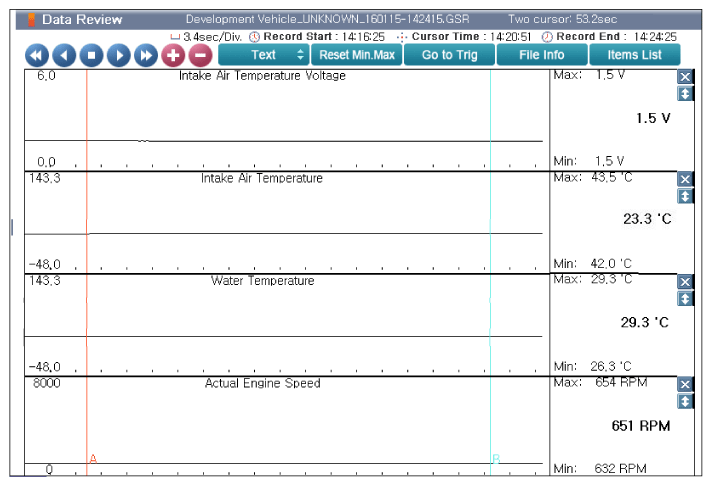

    Fig 2: Scantool Display - Engine At Idle And No Load
    G12153460Courtesy of KIA MOTORS AMERICA, INC.
  4. Are the parameters displayed correctly?

    YES

    • Fault is intermittent caused by poor contact in the sensor's and/or ECM/PCM's connector or was repaired and ECM/PCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "Verification of Vehicle Repair " procedure.

    NO
