2017
>>
Forte5 SX, Automatic DCT Trans
>>
Repair and Diagnosis
>>
Transmission
>>
Transmission Control Systems
>>
Dual Clutch Transmission Control System - 1.6L T
>>
Input Speed Sensor
>>
Schematic Diagrams
>>
Circuit Diagram
Circuit Diagram

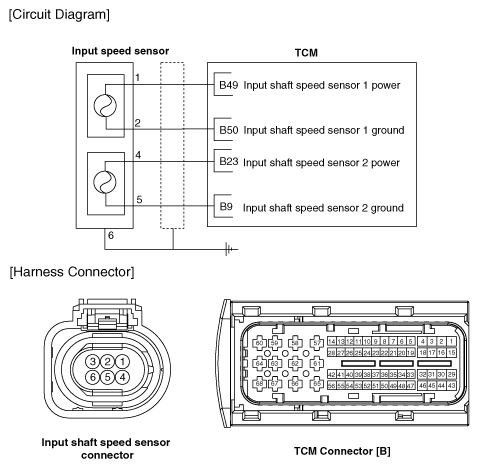

Fig 1: Input Shaft Speed Sensor Circuit Diagram And Connector End View
Courtesy of KIA MOTORS AMERICA, INC.
