Repair Procedures: Removal

  1. Place the shift lever in the "N" position.
  2. Remove the battery and battery tray.

    (Refer to Engine Electrical System - "BATTERY ")

  3. Remove the air duct and the air cleaner assembly.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

  4. Disconnect the inhibitor switch connector (A).
  5. Loosen the shift cable mounting nut (B).

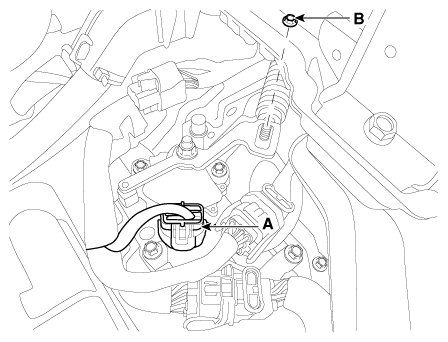

    Fig 1: Locating Inhibitor Switch Connector And Shift Cable Mounting Nut
    G12163559Courtesy of KIA MOTORS AMERICA, INC.
  6. Remove the manual control lever (A).

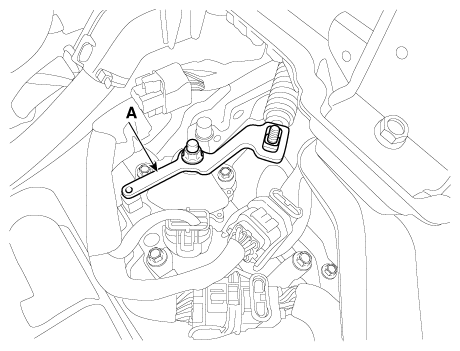

    Fig 2: Locating Manual Control Lever
    G12163560Courtesy of KIA MOTORS AMERICA, INC.
  7. Remove the inhibitor switch (A).

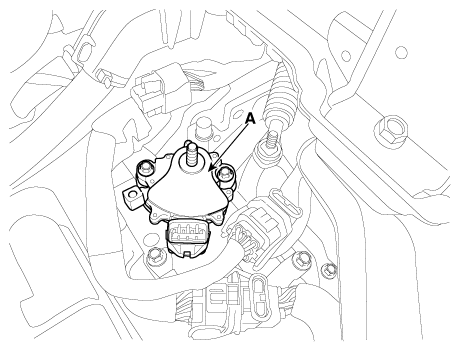

Fig 3: Locating Inhibitor Switch
G12163561Courtesy of KIA MOTORS AMERICA, INC.
