Component Inspection

■ Check Battery sensor performance

1. IG KEY "OFF".
2. Connect CH A probe to LIN signal terminal of battery sensor connector.
3. Warm up the engine to normal operating temperature.

   Specification:  Refer to SIGNAL WAVEFORM & Data

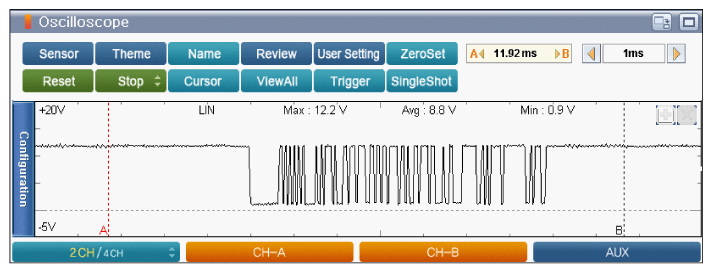

   Fig 1: Scantool Display - Signal Waveform & Data

   Courtesy of KIA MOTORS AMERICA, INC.

■ Confirm Part Inspection

1. Does the battery sensor operate properly? (Check variation)

   YES

   • Go to "Verification of Vehicle Repair " procedure.

   NO

   • Substitute with a known-good battery sensor and check for proper operation. If the problem is corrected, replace battery sensor and then go to "Verification of Vehicle Repair " procedure.
