Signal Waveform & Data

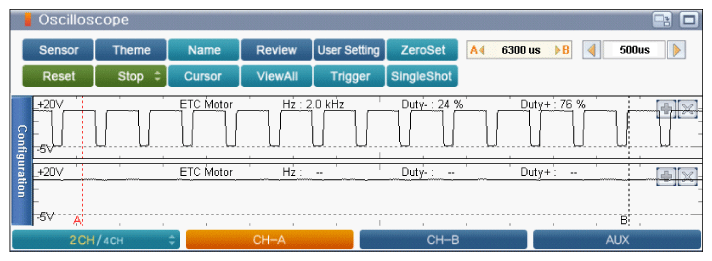

Fig 1: Scantool Display - Engine Idle After Warm Up

G12153937

Courtesy of KIA MOTORS AMERICA, INC.

ETC Moter (+) → Duty (+) Approx. 76%

Duty (-) Approx. 24%

ETC Motor (-) → Not in Control
