Monitor KDS/GDS Data

WARNING: This page is about a different variant/trim than selected.

Connect KDS/GDS to Data Link Connector (DLC).
Engine "ON"
Operate vehicle or system in accordance with Enable Condition in DTC Detecting Condition.
Move selector lever from "P" range to "D" range. And Driving at 1st gear to 7th gear.
Monitor "Shift Motor 1, 2 position" parameter in "Current Data" with KDS/GDS.
Specification: Refer to below

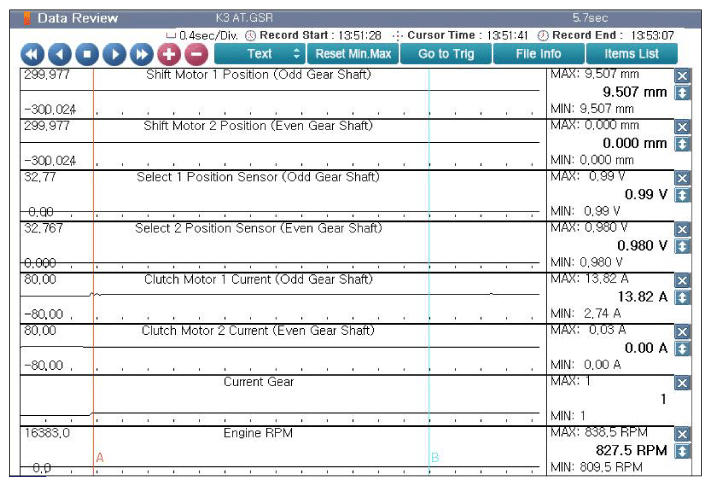

Fig 1: Screen Display - Driving Vehicle In 1st Gear
Courtesy of KIA MOTORS AMERICA, INC.

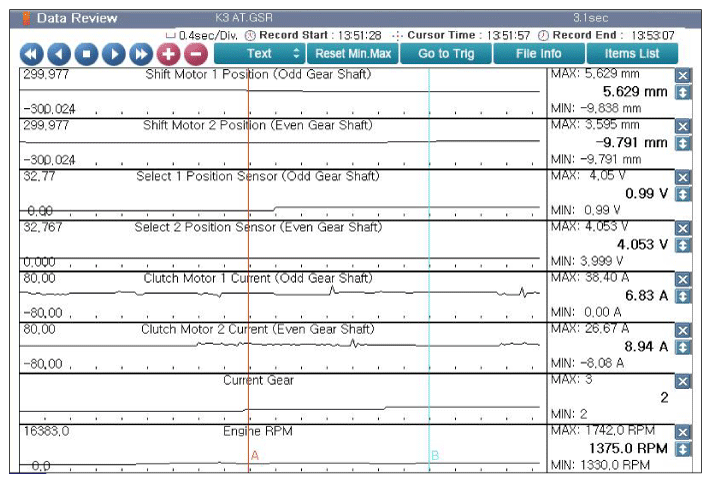

Fig 2: Screen Display - Driving Vehicle In 2nd Gear
Courtesy of KIA MOTORS AMERICA, INC.

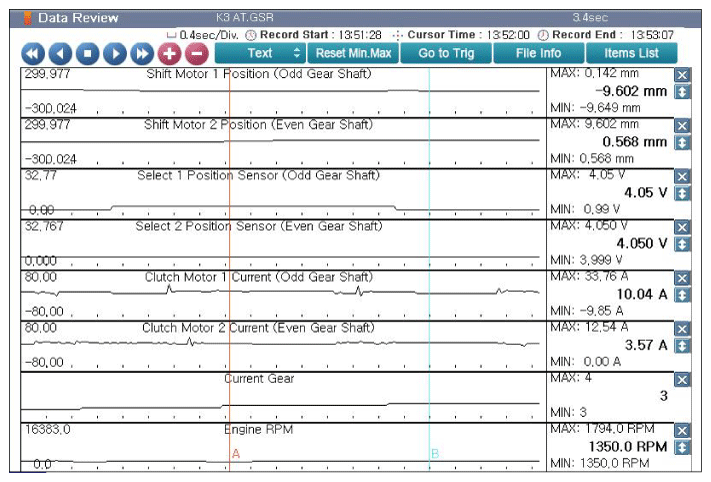

Fig 3: Screen Display - Driving Vehicle In 3rd Gear
Courtesy of KIA MOTORS AMERICA, INC.

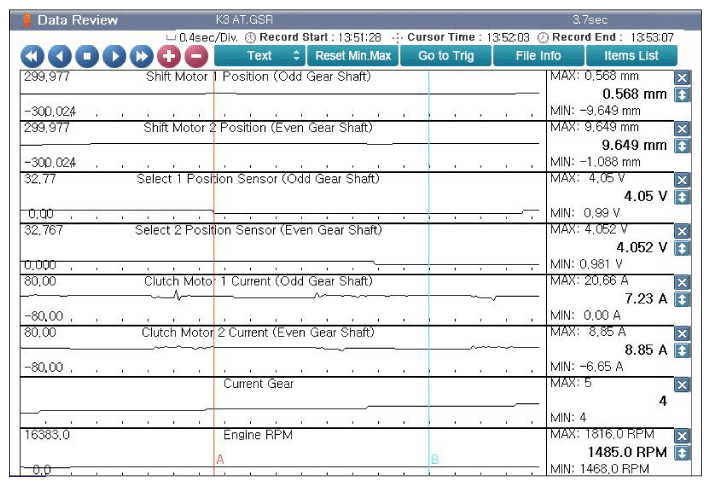

Fig 4: Screen Display - Driving Vehicle In 4th Gear
Courtesy of KIA MOTORS AMERICA, INC.

Fig 5: Screen Display - Driving Vehicle In 5th Gear
Courtesy of KIA MOTORS AMERICA, INC.

Fig 6: Screen Display - Driving Vehicle In 6th Gear
Courtesy of KIA MOTORS AMERICA, INC.

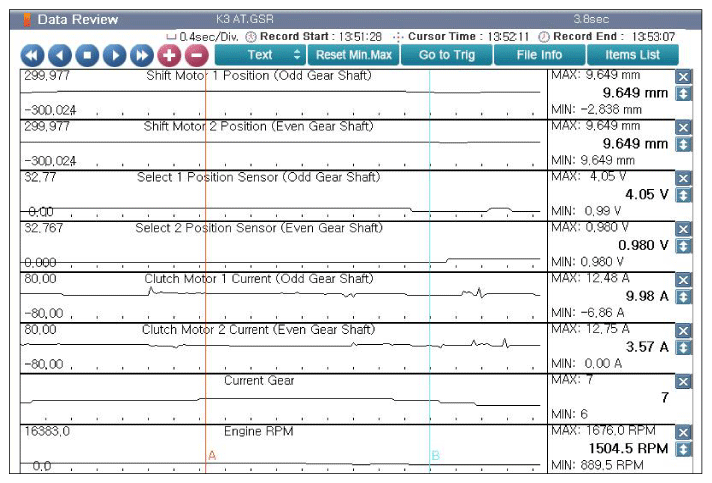

Fig 7: Screen Display - Driving Vehicle In 7th Gear
Courtesy of KIA MOTORS AMERICA, INC.
Is measured value within specification?
YES
- Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
- Repair or replace as necessary and then go to "Verification Of Repair " procedure.
NO
- Go to "Wiring Inspection " procedure.
