Repair Procedures: Removal

WARNING: This page is about a different car, the 2018 Kia Forte5 and 2018 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the head lamp leveling unit connector (A).
  2. Remove the head lamp leveling unit (B) after loosening the mounting bolts.

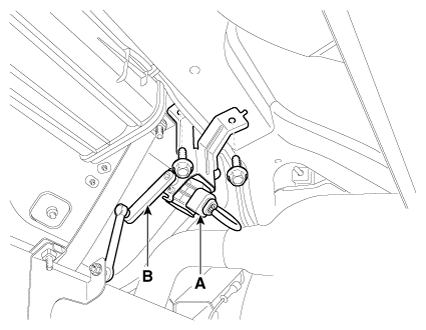

Fig 1: Head Lamp Leveling Unit Connector & Bolts
G12166514Courtesy of KIA MOTORS AMERICA, INC.
NOTE: Pull the sensor linkage (A) to the direction of an arrow.

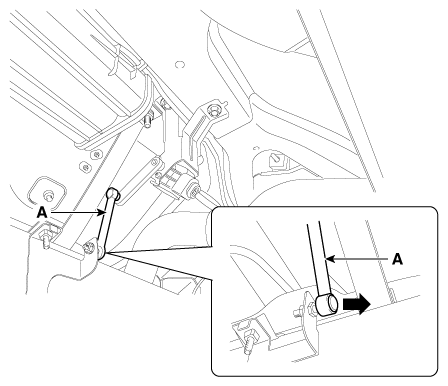

Fig 2: Removing Sensor Linkage
G12166515Courtesy of KIA MOTORS AMERICA, INC.
