Repair and Diagnosis
>>
Transmission
>>
Transmission Control Systems
>>
Automatic Transaxle Control System - 2.0L MPI Nu (A6GF1)
>>
Speed Sensor
>>
Schematic Diagrams
>>
Circuit Diagram
Circuit Diagram

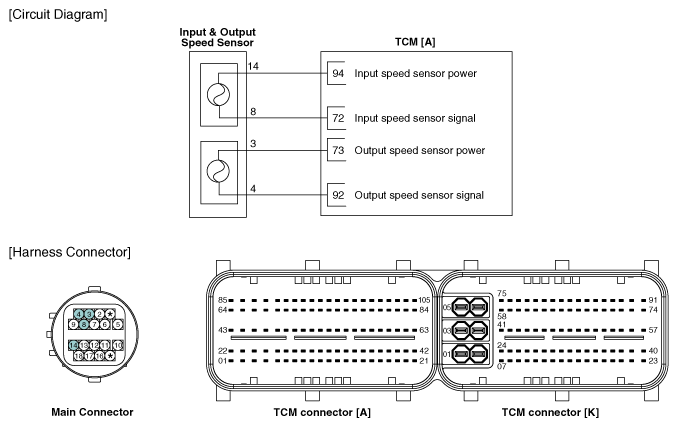

Fig 1: Speed Sensor System Circuit And Connector End View
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
