Repair Procedures: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Disconnect the connector (A) of the blower motor.
  3. Remove the blower motor (B) after loosening the mounting screws.

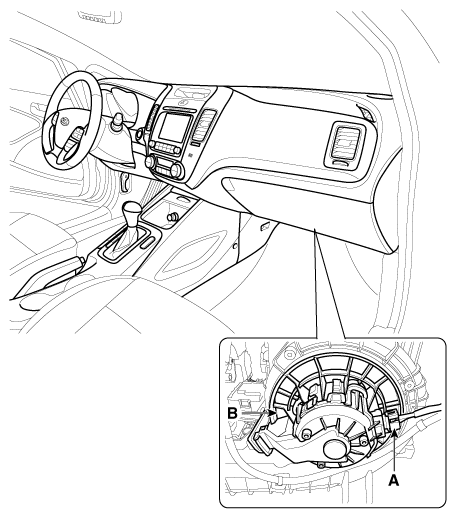

    Fig 1: Removing Blower Motor
    G12166766Courtesy of KIA MOTORS AMERICA, INC.
  4. Install in the reverse order of removal.
