Signal Waveform & Data

Fig 1: Screen Display - Normal Waveforms Of LIN Communication (With MICOM)
G12149809Courtesy of KIA MOTORS AMERICA, INC.

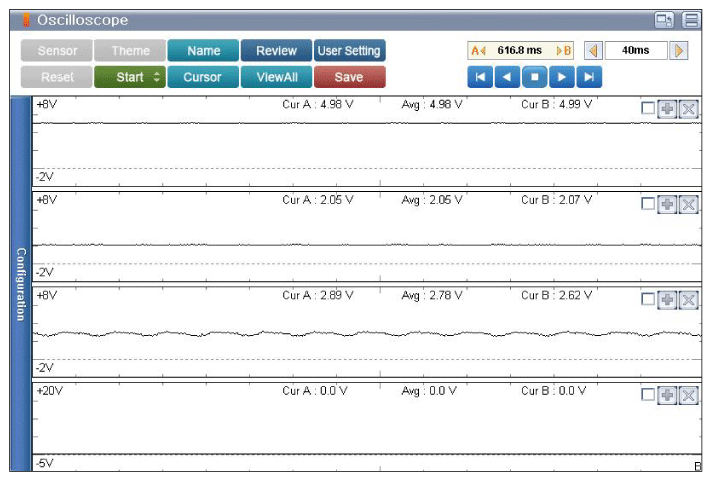

Fig 2: Screen Display - Normal Waveforms Of Battery Sensor (W/O MICOM)
G12149810Courtesy of KIA MOTORS AMERICA, INC.
