Component Location

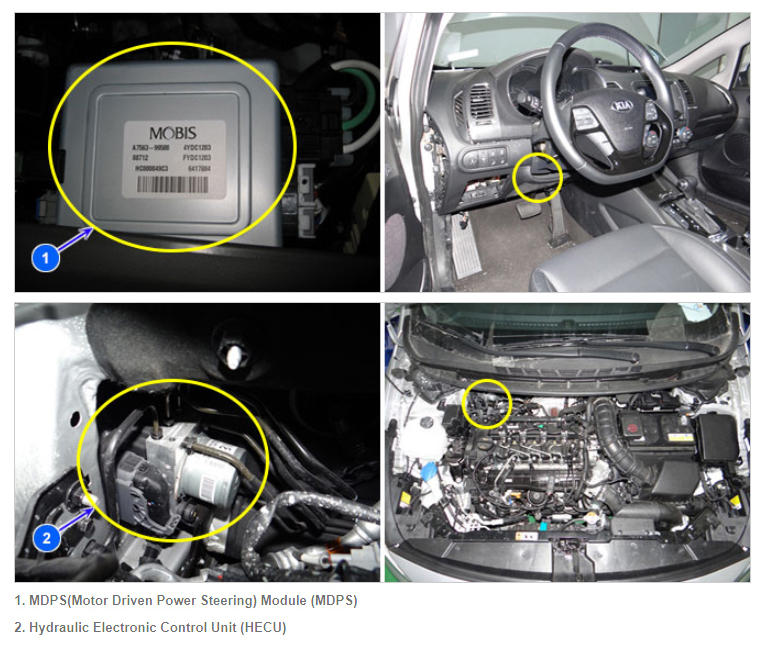

Fig 1: Locating Hydraulic Electronic Control Unit And Motor Driven Power Steering Module

G12160331

Courtesy of KIA MOTORS AMERICA, INC.
