Monitor GDS Data

Connect GDS to Data Link Connector (DLC).
Ignition "ON" & Engine "ON".
Select "Current Data " mode and monitor "Input Speed (PG-A)", "Output Speed (PG-B)", Shift Lever Switch", "Current Gear", "Engine RPM", "Vehicle Speed" parameter.
Driving above 20 Km/h (12.4mi/h).
Specification : Increasing Gradually

Fig 1: Screen Display - P, N Range
Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: Screen Display - R Range
Courtesy of KIA MOTORS AMERICA, INC.

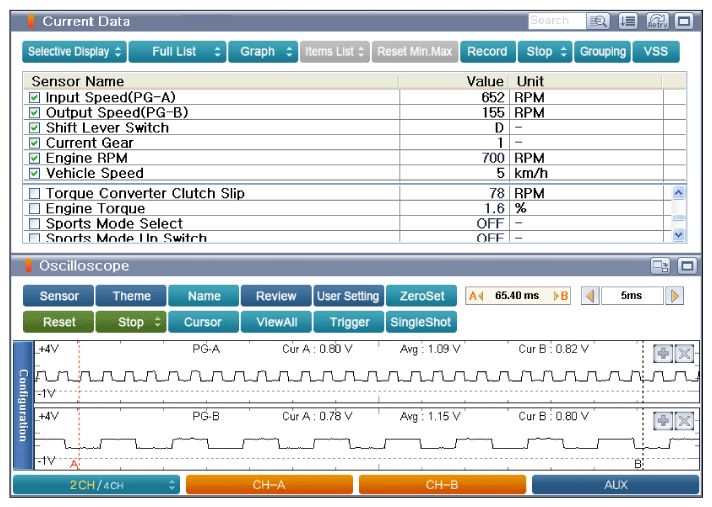

Fig 3: Screen Display - D Range 1st Gear
Courtesy of KIA MOTORS AMERICA, INC.

Fig 4: Screen Display - D Range 1st Gear (Vehicle Speed=0)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 5: Screen Display - D Range 2nd Gear
Courtesy of KIA MOTORS AMERICA, INC.

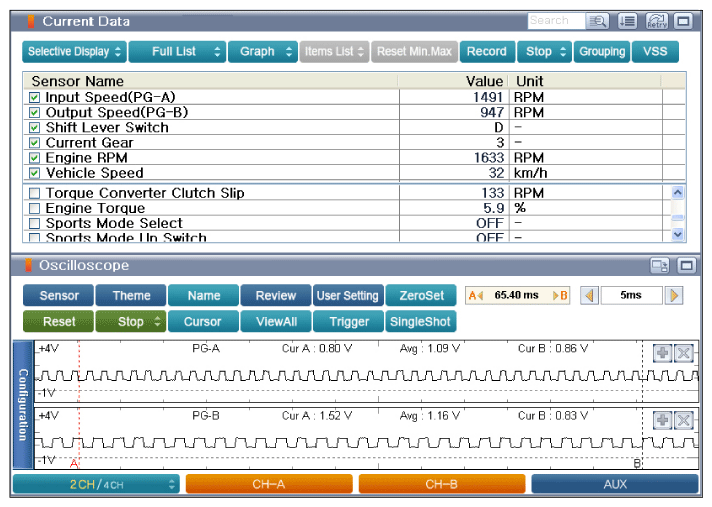

Fig 6: Screen Display - D Range 3rd Gear
Courtesy of KIA MOTORS AMERICA, INC.

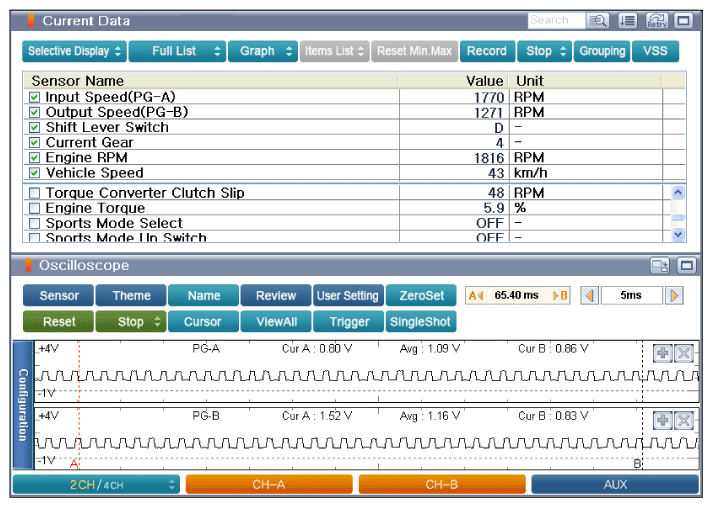

Fig 7: Screen Display - D Range 4th Gear
Courtesy of KIA MOTORS AMERICA, INC.

Fig 8: Screen Display - D Range 5th Gear
Courtesy of KIA MOTORS AMERICA, INC.

Fig 9: Screen Display - D Range 6th Gear
Courtesy of KIA MOTORS AMERICA, INC.
Is measured "Output speed sensor" value within specification?
YES
- Fault is intermittent caused by poor contact between PCM/TCM and Sensor, and DTC was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair as necessary and go to "Verification Vehicle Repair " procedure.
NO
- Go to "Terminal & Connector Inspection " procedure.
