Components And Components Location: Components

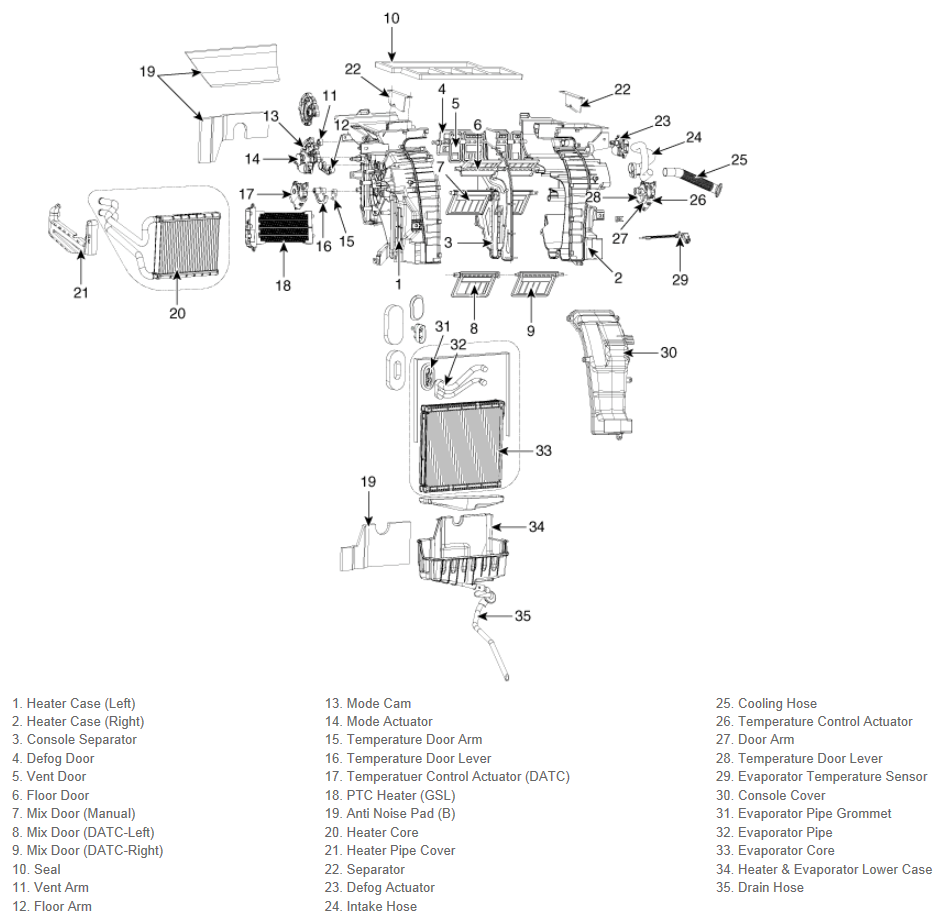

Fig 1: Heater Unit Components Location

G12166732

Courtesy of KIA MOTORS AMERICA, INC.
