Monitor DTC Status

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS/GDS to Data Link Connector (DLC).
  2. Monitor "Diagnostic Trouble Codes (DTC)" with GDS/KDS.
 Fig 1 to Fig 2
Fig 1: Screen Display - DTC Description
G12330921Courtesy of KIA MOTORS AMERICA, INC.

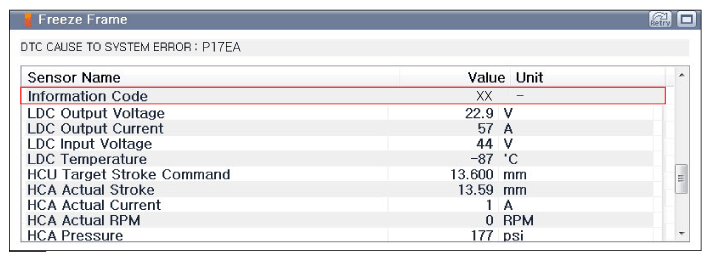

Fig 2: Screen Display - Information Code Freeze Frame Data
G12330922Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
  1. Symptom: No acceleration, rattling or engine braking
  2. MIL: ON (Check the information code number from freeze frame data)
  3. Service Lamp: OFF
  4. E/C Normal Close State (Lock Up: ON): it is temporarily opened at startup and then closed.
  5. Lock Up: Engine clutch ON state (HEV driving state: Engine driving + EV motor driving)
  6. Lock Up: Engine clutch OFF state (EV READY driving state: EV motor driving)
Information Code Fault Type HCA Limp Home Mode HCU Limp Home Mode
1 Angular Sensor Signal Invalid Signal_LCU E/C Mechanical close (HCA PWR OFF): Moving to OPEN by diaphragm spring - Fixing the current position or moving to the close, Close Not guaranteed
  1. IG Start: No driving (EV READY, Engine start and drive are not allowed at restarting after IG OFF)
  2. E/C Lock Up: HEV driving (E/C lockup and operating DCT) - Cliff (slip) control is operated at engine idle
  3. E/C Open: EV driving
  4. E/C Slip: EV driving

    * Maintain EV mode when entering E/C Open or Slip (engine torque is transmitted): it is not change to HEV mode

  5. E/C Unknown: EV driving (Applies to Information Code 1, 2, 3, 4, 6, 17, 21)
2 Angular Sensor Increment Out of Range_LCU
3 ADC of Microcontroller Invalid Signal_LCU
4 Microcontroller State Invalid_LCU
5 Electric Motor Undervoltage of Pre-Driver_LCU
6 5V Power Supply Out of Range_LCU
10 Over Temperature FET Model_LCU
11 Over Temperature B6 Bridge Driver_LCU
12 PCB Temperature Sensor Signal Invalid_LCU
14 Pressure Sensor Invalid Signal_LCU
17 Overload of Clutch
21 Refill Failed Clutch
22 Block Detection for Clutch Actuator
24 End of Life Clutch
Active Fault
History/Pending Fault
