Monitor KDS/GDS Data

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS/GDS to Data Link Connector (DLC).
  2. Monitor parameters in "Current Data" with GDS/KDS.
 Fig 1

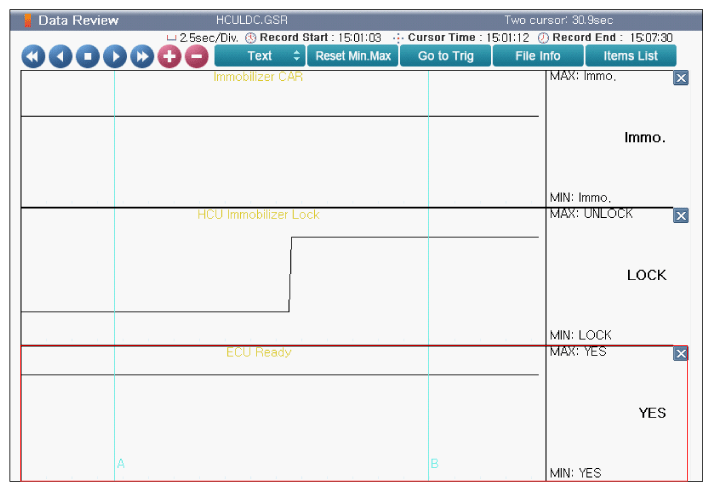

Fig 1: Screen Display - HCU Immobilizer Related To Current Data
G12330680Courtesy of KIA MOTORS AMERICA, INC.
Good
  • Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
  • Repair or replace as necessary and then go to "VERIFICATION OF REPAIR " procedure.
No Good
  • If there is a fault related Immobilizer or CAN, After diagnosing Engine ECU and SMK ECU, check and repair this fault first. Then, Check this DTC P1679 is set.
  • If the DTC is erased, check for proper operation. If the problem is corrected, replace Engine ECU and then go to "VERIFICATION OF REPAIR " procedure.
