ICM (Integrated Circuit Module) Relay Box

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

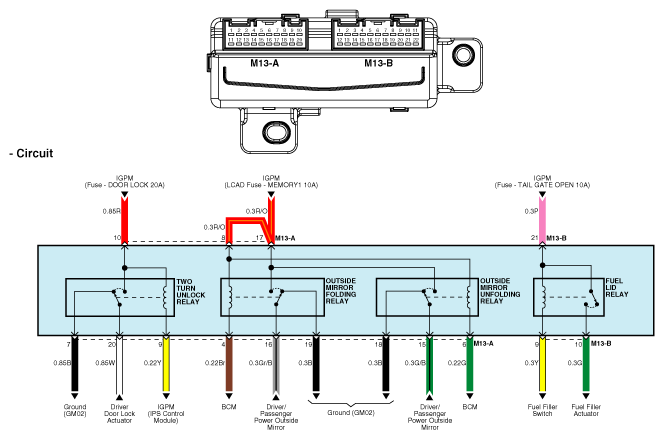

Fig 1: Relay Box (Passenger Compartment) - ICM (Integrated Circuit Module) Relay Box
G12334615Courtesy of KIA MOTORS AMERICA, INC.
RELAY BOX (PASSENGER COMPARTMENT) - ICM (INTEGRATED CIRCUIT MODULE) RELAY IDENTIFICATION

Relay Description
Two Turn Unlock Relay
Outside Mirror Folding Relay
Outside Mirror Unfolding Relay
Fuel Lid Relay
