Cooling Fan Control Module (PWM)

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery negative terminal.
Remove the air duct.
(Refer to Intake and Exhaust System - "AIR CLEANER ")
Disconnect the cooling fan control module (PWM) connector (A) and cooling fan motor connector (B).

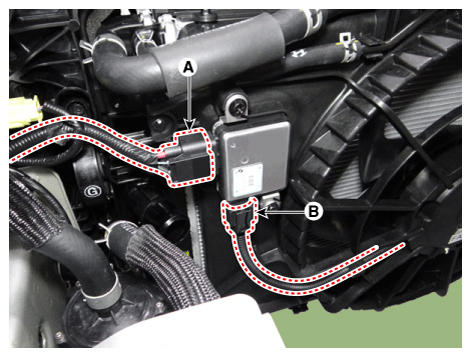

Fig 1: Disconnecting Cooling Fan Control Module (PWM) Connector And Cooling Fan Motor Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the cooling fan control module (PWM) (A).
Tightening Torque :

4.9 - 8.3 N.m (0.50 - 0.85 kgf.m, 3.6 - 6.1 lb.ft)

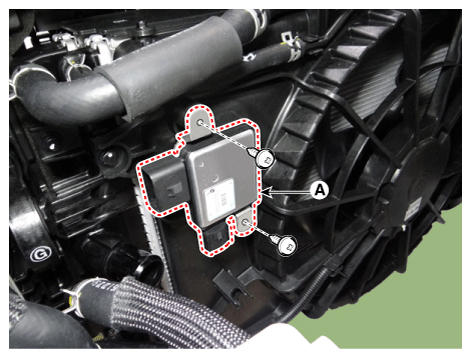

Fig 2: Removing Cooling Fan Control Module (PWM)
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
