Section 170 (Blind Spot Detection System (BSD))
>>
Blind Spot Detection Indicator
>>
Repair Procedures
>>
Inspection
Repair Procedures: Inspection
WARNING:
This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.
Verify that the mirror operates properly as shown in the below table.

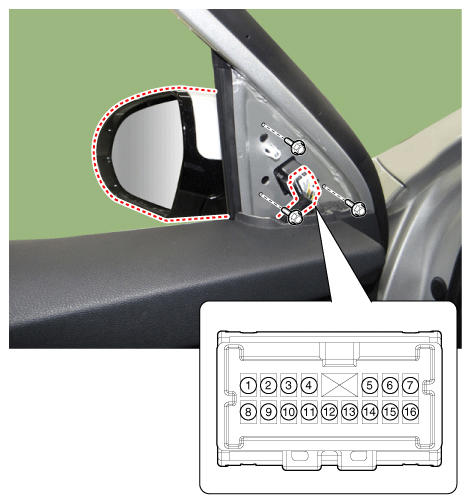

Fig 1: Locating Blind Spot Detection Warning Indicator Connector
Courtesy of KIA MOTORS AMERICA, INC.
Fig 2: Blind Spot Detection Warning Indicator Terminal Continuity Chart
Courtesy of KIA MOTORS AMERICA, INC.
