Repair Procedures: Replacement

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Put on gloves to protect your hands.

Information

Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Be careful not to bend or scratch the trim and panels.

Remove the rear door module.
(Refer to Rear Door - "REAR DOOR MODULE ")
Remove the rear back armrest (A) after loosening the cap & bolt.

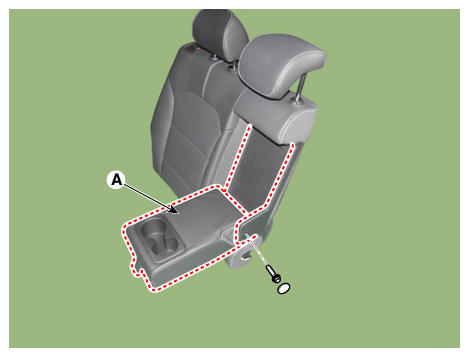

Fig 1: Removing Rear Back Armrest Cap & Bolt
Courtesy of KIA MOTORS AMERICA, INC.
Remove the rear back armrest board (A) after loosening the screws.

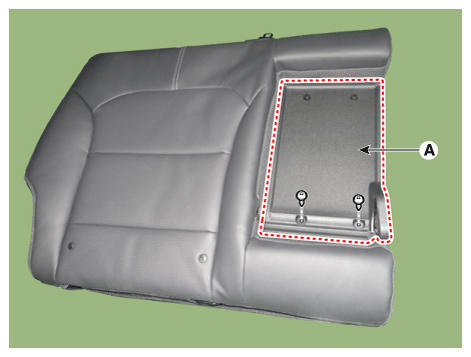

Fig 2: Removing Rear Back Armrest Board Screws
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.

Information

Make sure that the connectors are plugged in properly.
Replace any damaged clips.
