Repair Procedures: Removal: [SULEV]

Release the residual pressure in fuel line (Refer to the Fuel Delivery System - Repair Procedures - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ").
Remove the rear seat.
(Refer to Body - "REAR SEAT ASSEMBLY ")
Remove the fuel pump service cover (A).

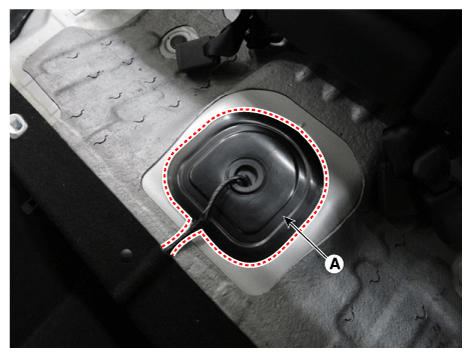

Fig 1: Removing Fuel Pump Service Cover
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the fuel pump connector (A) and the fuel tank pressure sensor connector (B).
Disconnect the fuel feed tube quick connector (C) and the vapor tube quick-connector (D).
Remove the rubber cover (E).
Fuel Pump Plate Cover [SULEV]:

78.5 - 98.1 N.m (8.0 - 10.0 kgf.m, 57.9 - 72.4 lb.ft)

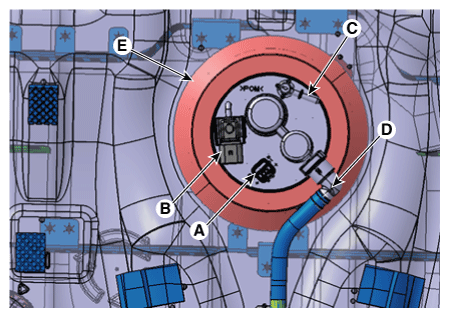

Fig 2: Disconnecting Fuel Pump Connector And Fuel Tank Pressure Sensor Connector
Courtesy of KIA MOTORS AMERICA, INC.
Unscrew the fuel pump plate cover with the special service tool (SST No.: 09310-2B200) and remove the fuel pump assembly.
Remove the fuel pump from the fuel tank.

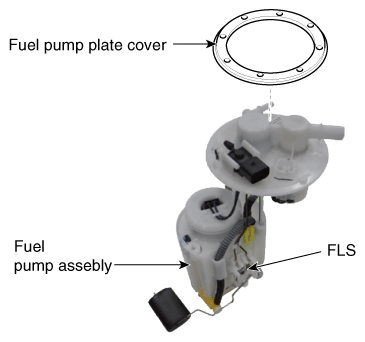

Fig 3: Fuel Pump From Fuel Tank

Courtesy of KIA MOTORS AMERICA, INC.
