Repair Procedures: Replacement

CAUTION:
  • Put on gloves to protect your hands.
NOTE:
  • When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
  • Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
  • Take care not to bend or scratch the trim and panels.
  1. Remove the front seat assembly.

    (Refer to Front Seat - "FRONT SEAT ASSEMBLY ")

  2. Remove the front seat shield outer cover.

    (Refer to Front Seat - "FRONT SEAT SHIELD OUTER COVER ")

  3. Remove the front seat shield inner cover.

    (Refer to Front Seat - "FRONT SEAT SHIELD INNER COVER ")

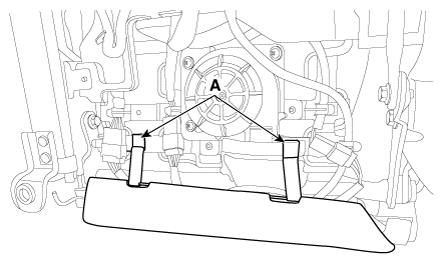

  4. Remove the front seat lower protector (A).
    Fig 1: Locating Front Seat Lower Protector
    G12164365Courtesy of KIA MOTORS AMERICA, INC.

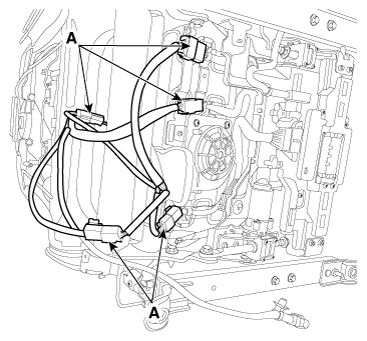

  5. Disconnect the connectors (A).
    Fig 2: Locating Connectors
    G12164366Courtesy of KIA MOTORS AMERICA, INC.

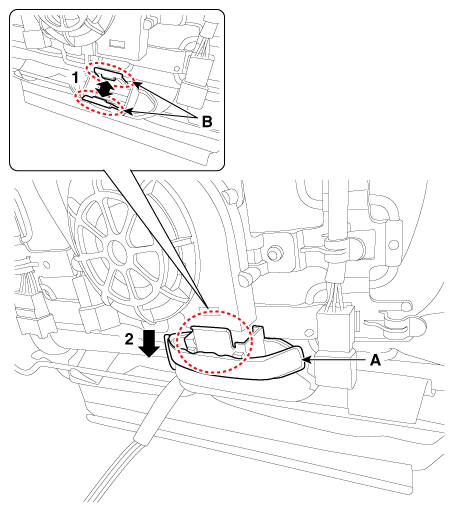

  6. To remove the air ventilation seat cushion duct (A), widen the both sides of the clips (B) as the direction of the arrow and then pull down the air ventilation seat cushion duct.
    Fig 3: Removing Air Ventilation Seat Cushion Duct
    G12164367Courtesy of KIA MOTORS AMERICA, INC.

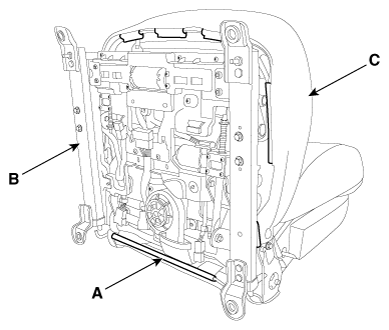

  7. Pull out the protector (A), and then front seat cushion cover (C) from the front seat cushion frame (B).
    Fig 4: Locating Protector, Front Seat Cushion Cover And Front Seat Cushion Frame
    G12164368Courtesy of KIA MOTORS AMERICA, INC.

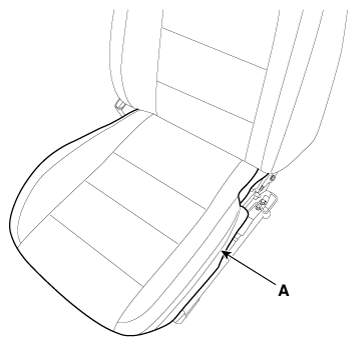

  8. Remove the front seat cushion cover (A) from the front seat cushion frame.
    Fig 5: Locating Front Seat Cushion Cover
    G12164369Courtesy of KIA MOTORS AMERICA, INC.
  9. After removing the hog-ring clips (A) on the front of seat cushion and remove the front seat cushion cover (B).
    Fig 6: Locating Hog-Ring Clips And Front Seat Cushion Cover
    G12164370Courtesy of KIA MOTORS AMERICA, INC.
  10. Install in the reverse order of removal.

    Information

    • To prevent wrinkles, make sure the material is stretched evenly over the cover (B) before securing the hog-ring clips (A).
    • Replace the hog-ring clips with new ones using special tool (C) (09880-4F000).
    Fig 7: Replacing Hog-Ring Clips Using Special Tool (09880-4F000)
    G12164371Courtesy of KIA MOTORS AMERICA, INC.
