Circuit diagram

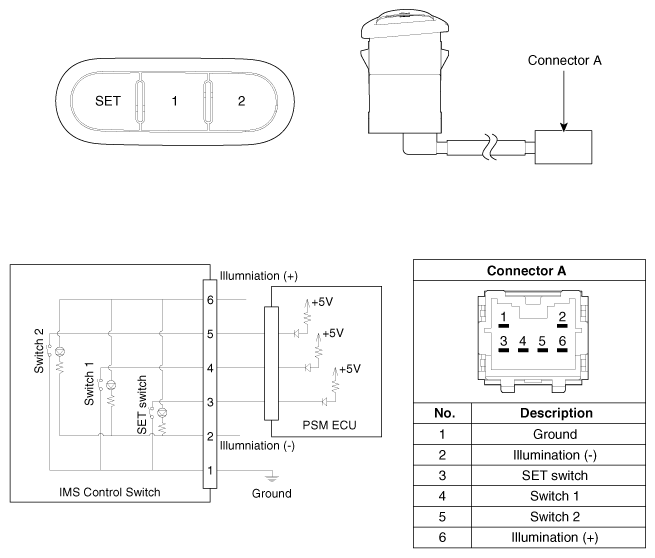

Fig 1: IMS Power Seat Control Circuit Diagram

G12164723

Courtesy of KIA MOTORS AMERICA, INC.
