Components And Components Location: Component

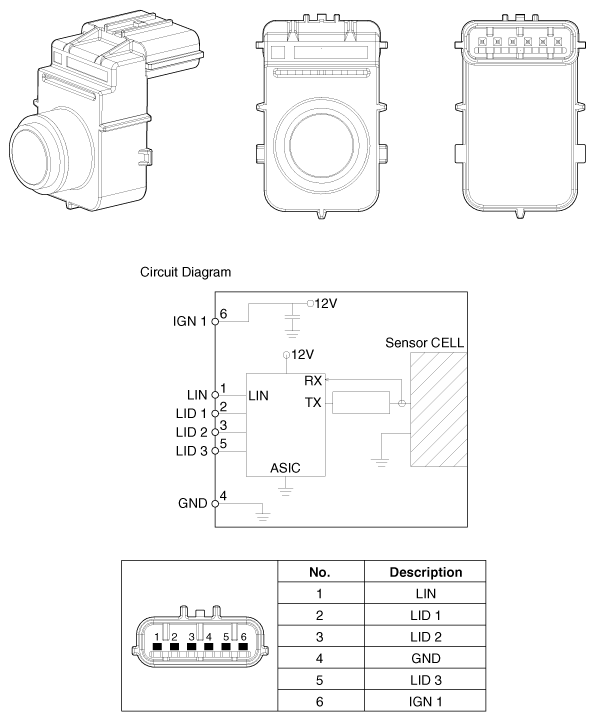

Fig 1: Parking Assist Sensor Circuit Diagram

G12166583

Courtesy of KIA MOTORS AMERICA, INC.
