Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad side switch assembly (A).
    Fig 1: Removing Crash Pad Side Switch Assembly
    G12166635Courtesy of KIA MOTORS AMERICA, INC.
  3. Disconnect the crash pad side switch connectors (A).

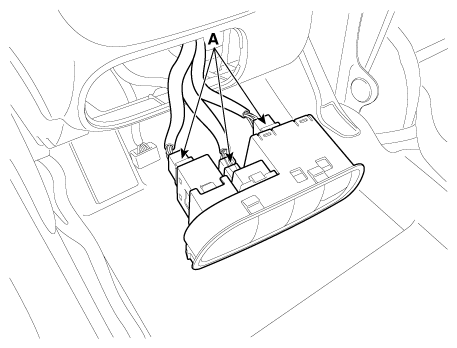

Fig 2: Disconnecting Crash Pad Side Switch Connectors
G12166636Courtesy of KIA MOTORS AMERICA, INC.
