Back View Camera
>>
Schematic Diagrams
>>
Circuit Diagram
Circuit Diagram

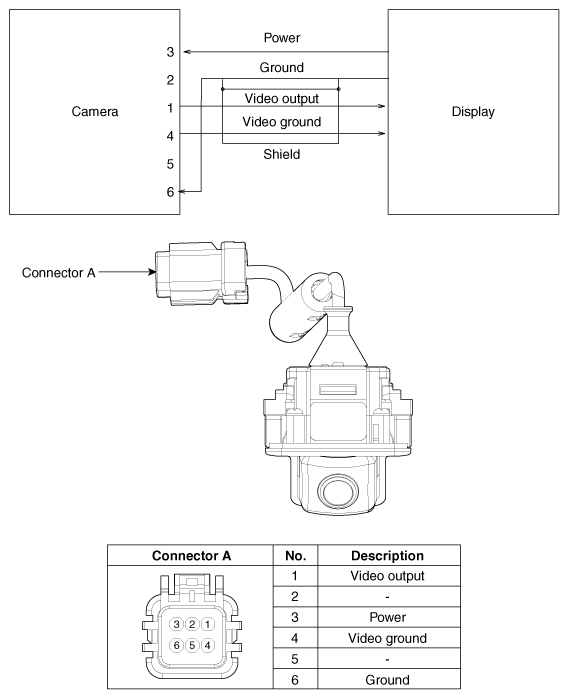

Fig 1: Back View Camera System Circuit Diagram And Connector End View
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
