Home >> Kia >> 2017 >> Forte EX >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Drivers Assistance Systems - ADAS >> Lane Keeping Assist System (LKAS) >> LKAS Unit >> Components And Components Location >> Components

Components And Components Location: Components

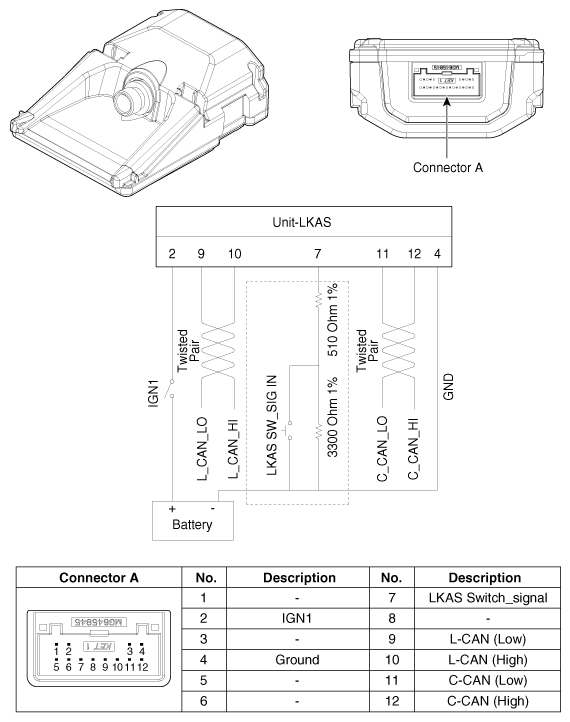

Fig 1: LKAS Unit Circuit Diagram & Connector End View

G12166657

Courtesy of KIA MOTORS AMERICA, INC.
