Monitor KDS/GDS Data

Ignition "OFF", connect KDS/GDS.
Ignition "ON", select "Current Data" with KDS/GDS.
Monitor the "Read Class Status" parameter on the KDS/GDS.

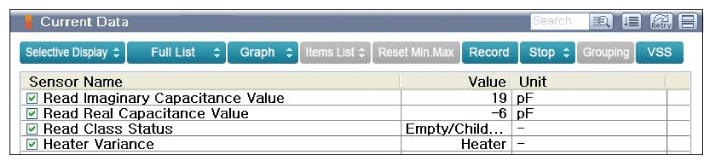

Fig 1: Scantool Display - Current Data (Passenger Unoccupied)
Courtesy of KIA MOTORS AMERICA, INC.

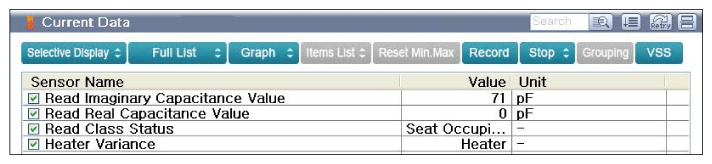

Fig 2: Scantool Display - Current Data (Passenger Occupied)
Courtesy of KIA MOTORS AMERICA, INC.
Has a problem been found?
YES
- Go to "WIRING INSPECTION " procedure.
NO
- Fault is intermittent caused by poor contact in the part's and/or passenger side body sensor ECU connector or was repaired and passenger side body sensor ECU memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF REPAIR " procedure.
