Monitor DTC Status

  1. Connect KDS/GDS to Data Link Connector (DLC).
  2. Ignition "ON".
  3. Monitor "Diagnostic Trouble Codes (DTC)" with KDS/GDS.

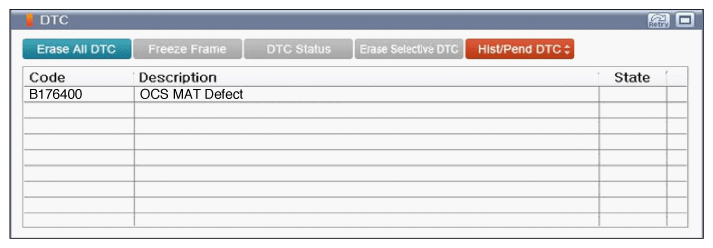

    Fig 1: Scantool Display - Diagnostic Trouble Code
    G12280693Courtesy of KIA MOTORS AMERICA, INC.
  4. Is DTC status displayed as present?

    YES

    NO
