Repair Procedures: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Remove the glove box housing.

    (Refer to Body - "GLOVE BOX HOUSING ")

  3. Remove the passenger side shower duct (A) after loosening the screw.
    Fig 1: Locating Passenger Side Shower Duct Screw
    G12288446Courtesy of KIA MOTORS AMERICA, INC.
  4. Disconnect the connector (A) and then remove the intake actuator (B) after loosening the mounting screw.

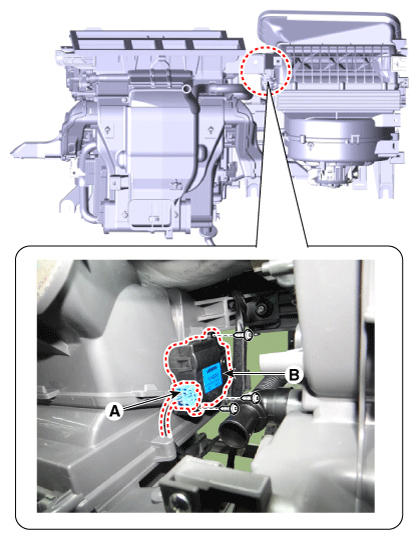

    Fig 2: Locating Intake Actuator With Mounting Screw
    G12288447Courtesy of KIA MOTORS AMERICA, INC.
  5. Install in the reverse order of removal.
