Repair Procedures: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad under cover [RH] (A).
    Fig 1: Locating Crash Pad Under Cover - LH
    G12288439Courtesy of KIA MOTORS AMERICA, INC.
  3. Disconnect the connector (A) and then remove the field effect transistor (B) after loosening the mounting screws.

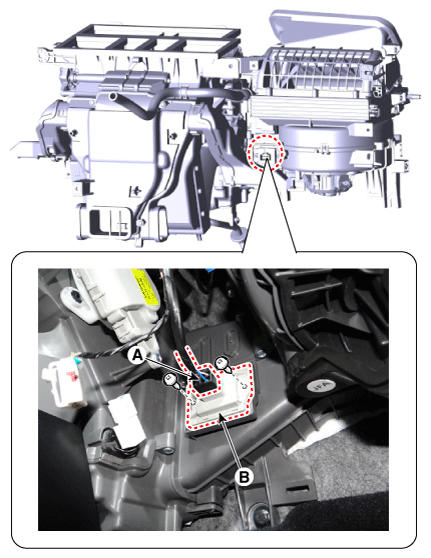

    Fig 2: Locating Field Effect Transistor With Mounting Screws
    G12288440Courtesy of KIA MOTORS AMERICA, INC.
  4. Install in the reverse order of removal.
