Components And Components Location: Components

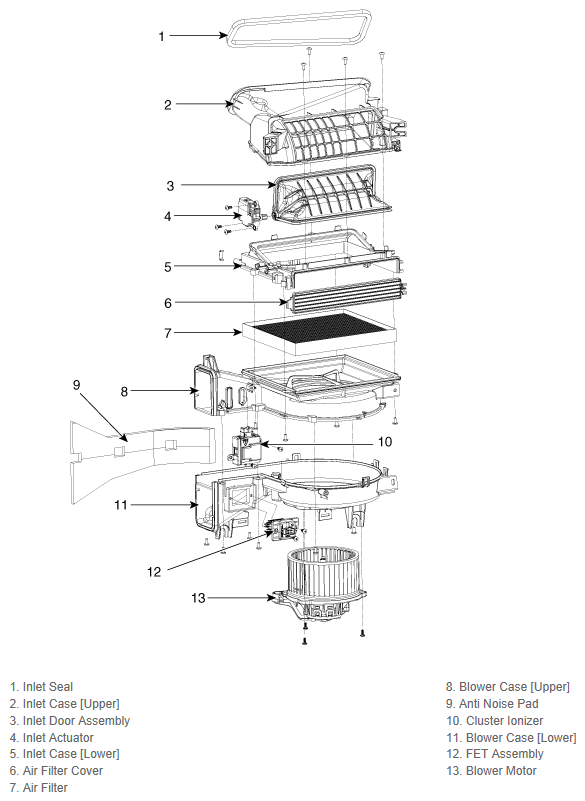

Fig 1: Exploded View Of Blower Unit

G12288400

Courtesy of KIA MOTORS AMERICA, INC.
