Repair Procedures: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad under cover (A).

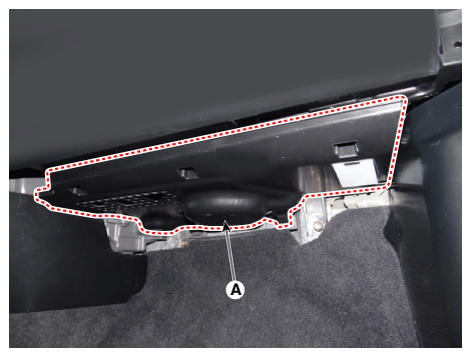

    Fig 1: Locating Crash Pad Under Cover
    G12288436Courtesy of KIA MOTORS AMERICA, INC.
  3. Disconnect the blower motor connector (A) and then remove the blower motor (B) after loosening the screws.

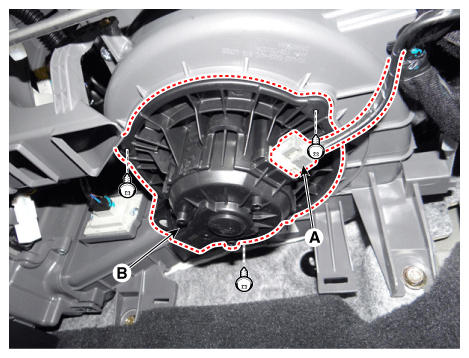

    Fig 2: Locating Blower Motor With Screws
    G12288437Courtesy of KIA MOTORS AMERICA, INC.
  4. Install in the reverse order of removal.
