Part Circuit Diagram

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

[Hybrid Drive Motor]

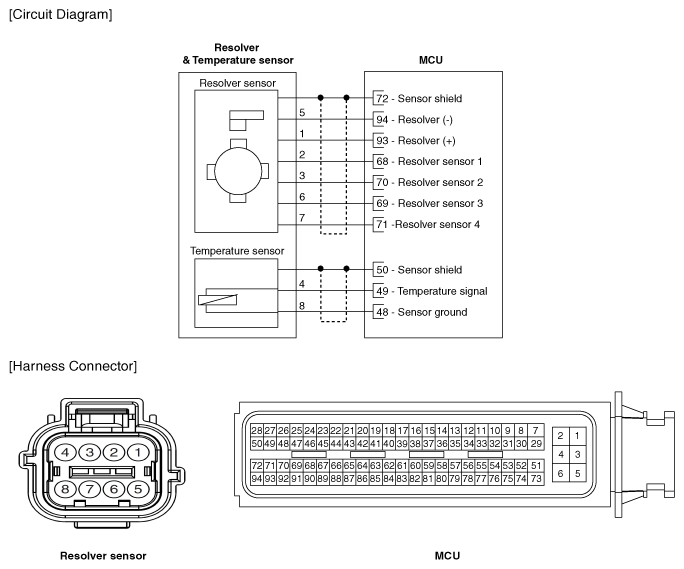

Fig 1: Hybrid Drive Motor System Circuit
G12336424Courtesy of KIA MOTORS AMERICA, INC.

[HSG]

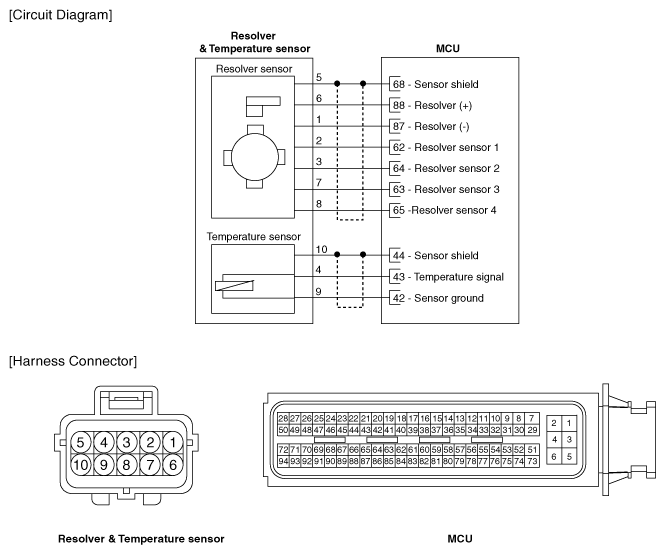

Fig 2: HSG System Circuit
G12336425Courtesy of KIA MOTORS AMERICA, INC.
