Monitor KDS/GDS Data

  1. Connect KDS/GDS to Data Link Connector (DLC).
  2. Ignition "ON", Engine "ON" (Cold condition)
  3. Check the "Current Data" about related DTC with KDS/GDS.

    Specification:  Refer to Fig 1

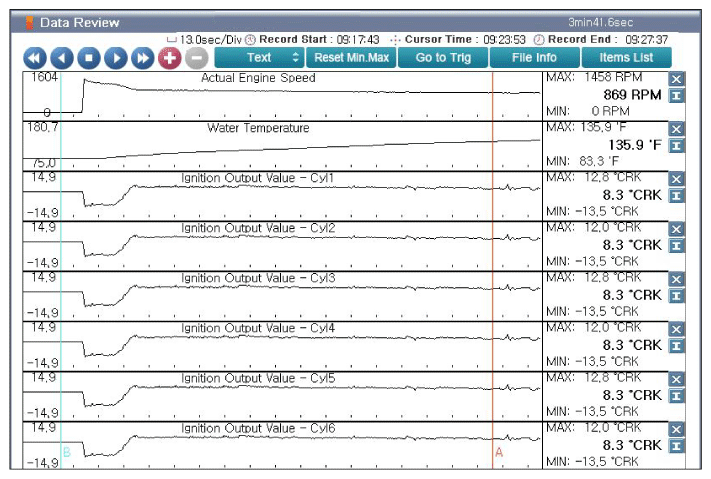

    Fig 1: Scantool Display - Initial Current Data Of Engine At Cold Start
    G12285242Courtesy of KIA MOTORS AMERICA, INC.
  4. Is the parameter displayed within specification?

    YES

    • Fault is intermittent caused by poor contact in the sensor's and/or ECM's connector or was repaired and ECM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "Verification Of REPAIR " procedure.

    NO
