EPB Not Applied

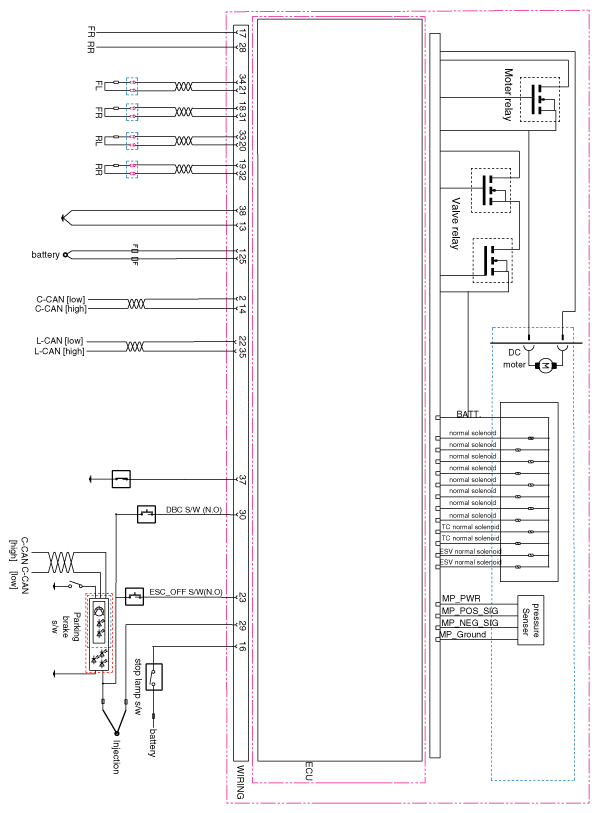

Fig 1: Electronic Stability Program System Schematic Diagram (EPB Not Applied)
G12294507Courtesy of KIA MOTORS AMERICA, INC.
