EPB Applied

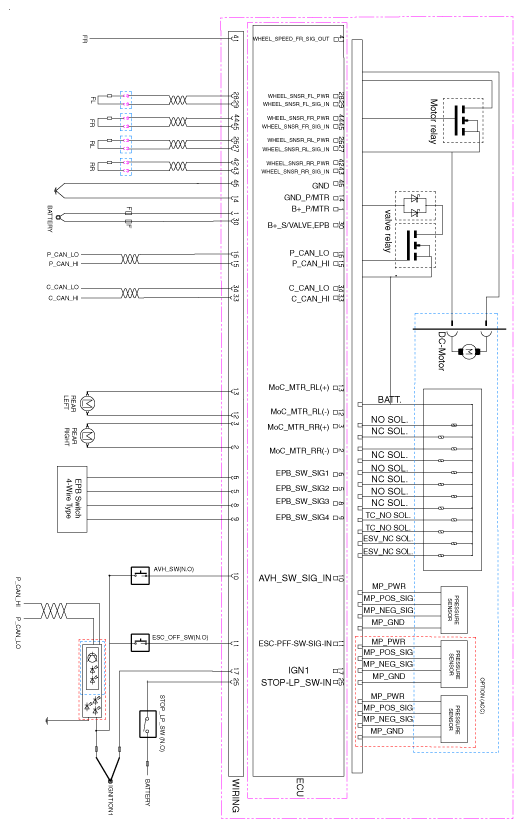

Fig 1: Electronic Stability Program System Schematic Diagram (EPB Applied)

G12294508

Courtesy of KIA MOTORS AMERICA, INC.
