Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the console upper cover.

    (Refer to Body - "FLOOR CONSOLE ")

  3. Remove the console upper cover mounting wiring connector (A).

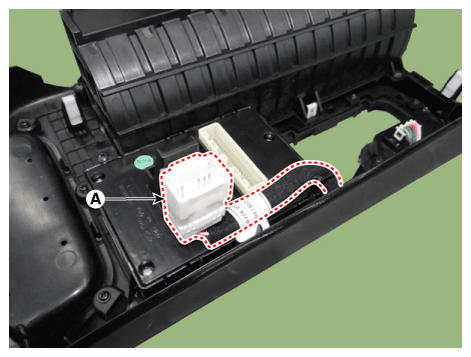

    Fig 1: Locating Console Upper Cover Mounting Wiring Connector
    G12298998Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the console upper cover switch (A) after loosening the mounting screws.

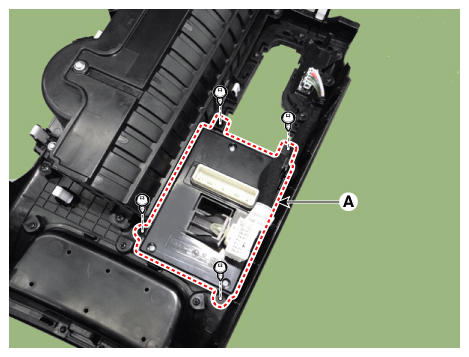

    Fig 2: Removing Console Upper Cover Switch Mounting Screws
    G12298999Courtesy of KIA MOTORS AMERICA, INC.
