Tolerance Compensation Environments

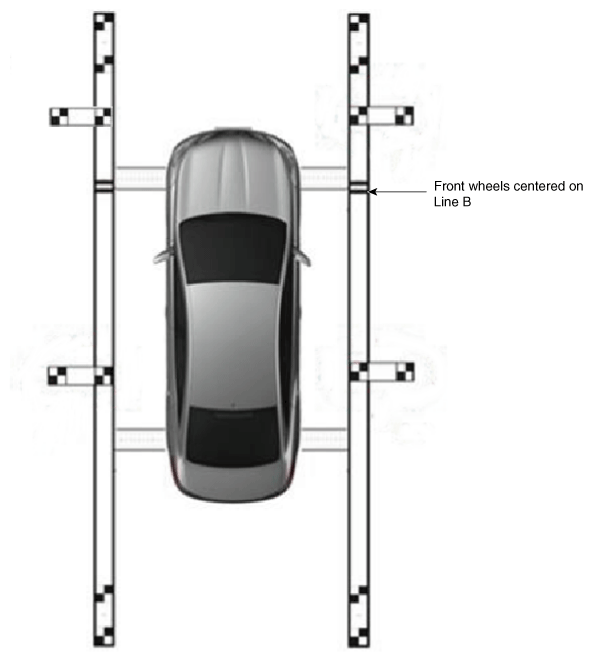

Fig 1: Tolerance Compensation Environments - Front Wheels Centered On Line
G12298973Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
  • There are two types of tolerance compensations: [manual tolerance compensation] and [automatic tolerance compensation].
  • The service center with the SVM exclusive workshop performs [automatic tolerance compensation].
  • The maintenance environment lacking an SVM exclusive workshop performs [manual tolerance compensation].
