Surround View Monitor System Diagnosis
>>
DTC B16B7-00: Front Camera Input Error
>>
Components Location
Components Location

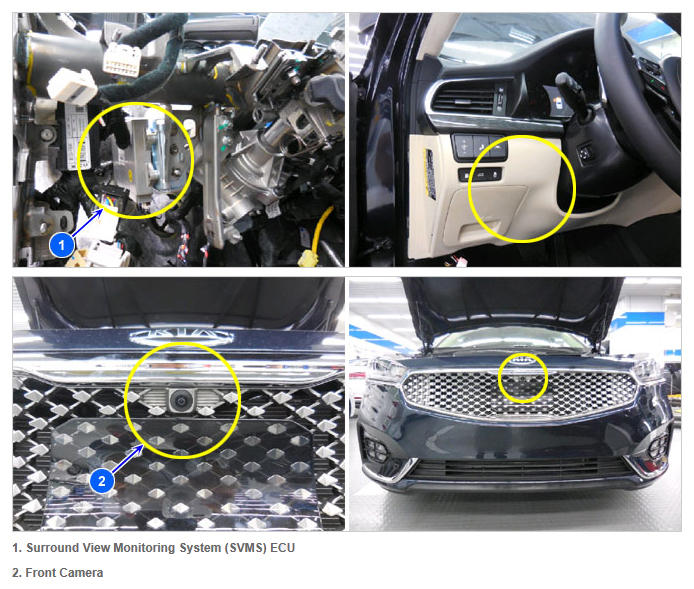

Fig 1: Surround View Monitoring System (SVMS) ECU & Front Camera Components Location
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
