Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

  3. Remove the crash pad garnish [LH] (A) after loosening the mounting screw.
    Fig 1: Removing Crash Pad Garnish Mounting Screw - LH
    G12298336Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the crash pad side switch (A) after loosening the mounting screws.

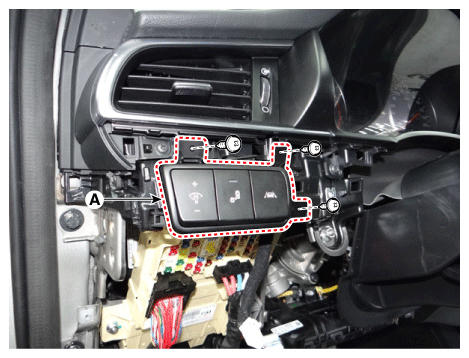

    Fig 2: Removing Crash Pad Side Switch Mounting Screws
    G12298337Courtesy of KIA MOTORS AMERICA, INC.
  5. Disconnect the crash pad side switch connector (A).

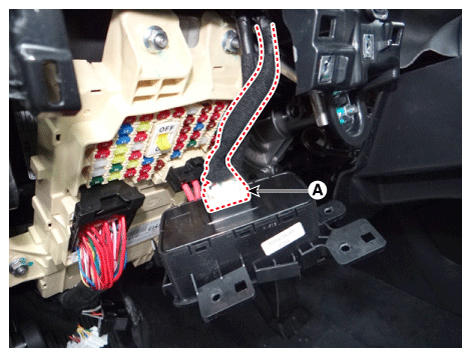

    Fig 3: Locating Crash Pad Side Switch Connector
    G12298338Courtesy of KIA MOTORS AMERICA, INC.
