Description And Operation: Description

To correctly sense vehicles on the neighboring lanes using the radar, the direction of the sensor and the direction of the vehicle must be aligned. This is the BSD unit alignment. If this alignment is not performed as in illustration below, it may cause degradation of detection performance and false alarms.

In particular, vehicles with damaged rear bumper from accident and vehicles that replaced BSD unit must carry out this alignment procedure.

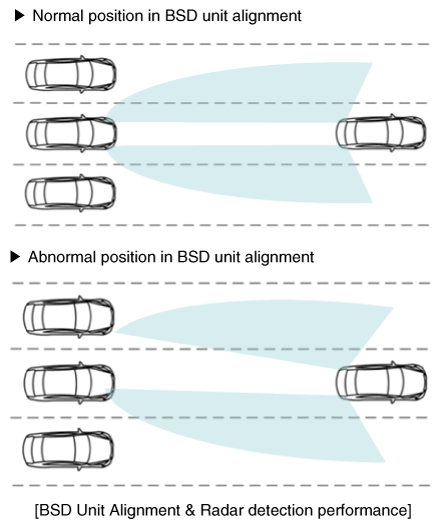

Fig 1: Vehicle Driving Blind Spot Detection Radar Calibration (Normal And Abnormal Position In BSD Unit Alignment)

Courtesy of KIA MOTORS AMERICA, INC.

1. The vehicles with damaged rear bumper from accident and vehicles that replaced BSD unit must perform BSD alignment using KDS/GDS.
2. Select "BSD Radar Calibration" procedure in BSD system.

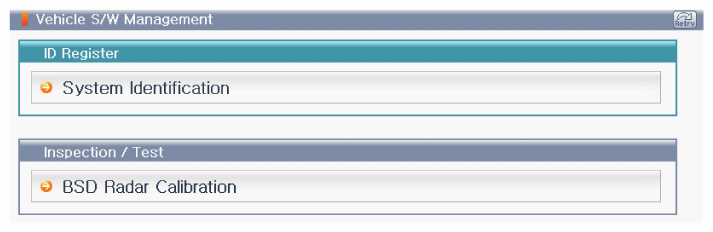

   Fig 2: Screen Display - Select BSD Radar Calibration Procedure In BSD System

   Courtesy of KIA MOTORS AMERICA, INC.
3. Perform the "BSD Radar Calibration" procedure as indicated on KDS/GDS screen.

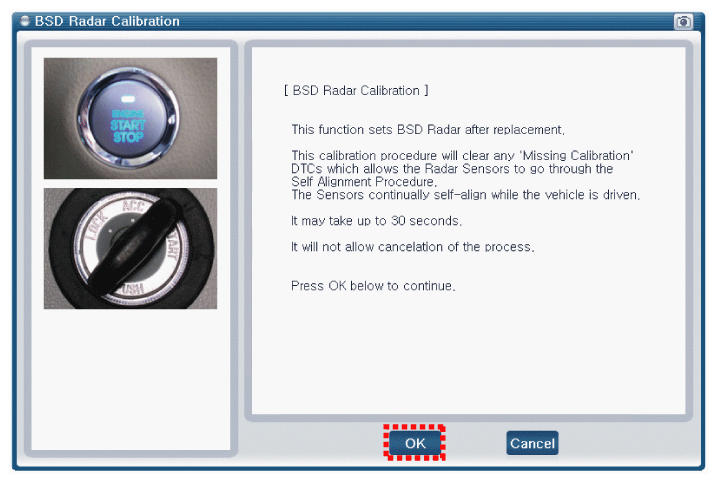

   Fig 3: Screen Display - Perform BSD Radar Calibration Procedure (1 Of 2)

   Courtesy of KIA MOTORS AMERICA, INC.

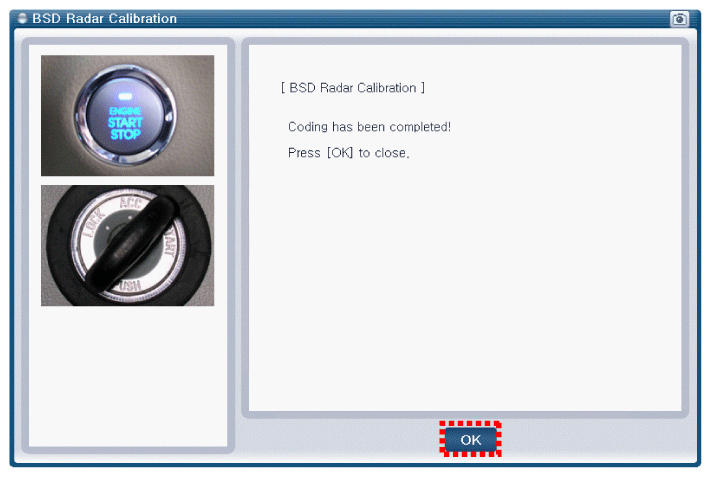

   Fig 4: Screen Display - Perform BSD Radar Calibration Procedure (2 Of 2)

   Courtesy of KIA MOTORS AMERICA, INC.
